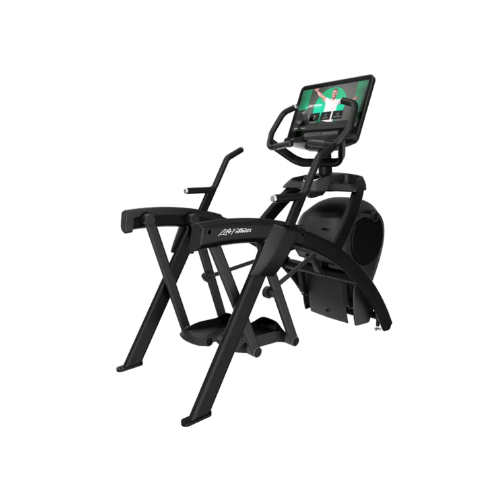

Life Fitness Lower Body Arc Trainer

LIFE FITNESS LOWER BODY ARC TRAINER

The Life Fitness Lower Body Arc Trainer is a versatile alternative-motion cross-trainer designed to deliver a highly adaptable, low-impact cardio experience. With 21 incline levels and a wide range of resistance, users can customize their movement and target different muscle groups throughout their workout.

The Arc Trainer functions as a unique 3-in-1 cardio machine, allowing exercisers to glide at lower inclines, stride at medium inclines, or climb at higher inclines. This versatility makes it suitable for everything from long cardio sessions and interval training to workouts focused on power and strength.

THREE WAYS TO TRAIN

The wide 21-level incline range creates multiple workout experiences within one machine:

• Glide — Lower incline positions for smooth, low-impact movement
• Stride — Medium incline positions for a natural cross-training experience
• Climb — Higher incline positions for more demanding lower-body workouts

With a 24" stride length, oversized pedals, and only 3" of minimum spacing between foot pedals, the Lower Body Arc Trainer is designed to provide a comfortable and natural workout experience.

ADVANCED PERFORMANCE

The Lower Body Arc Trainer features 100 resistance levels and a brushless eddy current brake with generator-driven resistance. Its two-stage drive system delivers resistance up to 1,200 watts, allowing users to move from steady-state cardio to more challenging power-focused training.

DESIGNED FOR COMMERCIAL FITNESS FACILITIES

Built for demanding commercial environments, the Lower Body Arc Trainer supports users up to 400 lbs and features durable construction for consistent daily use. Cruiser Grips and Halo Grips provide multiple hand positions, while integrated storage includes a centrally located water bottle holder, dual utility trays, and a magazine rack.

CONSOLE OPTIONS

Choose the console configuration that best fits your facility:

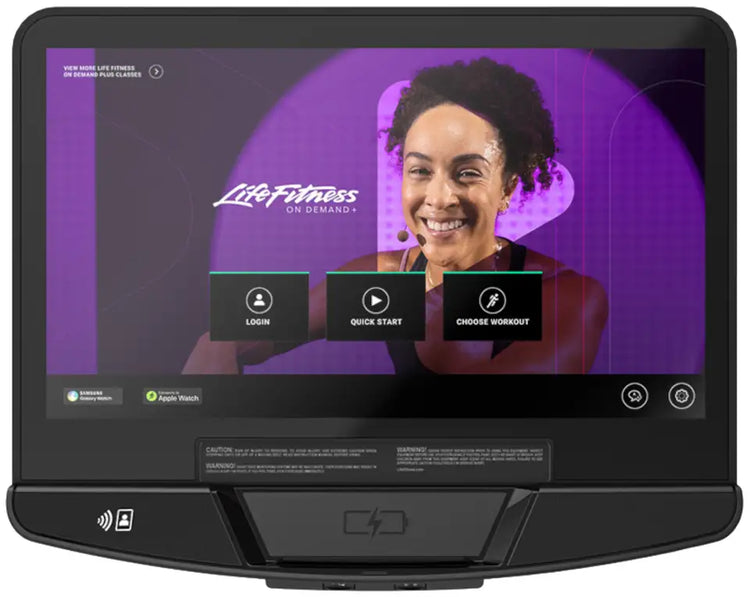

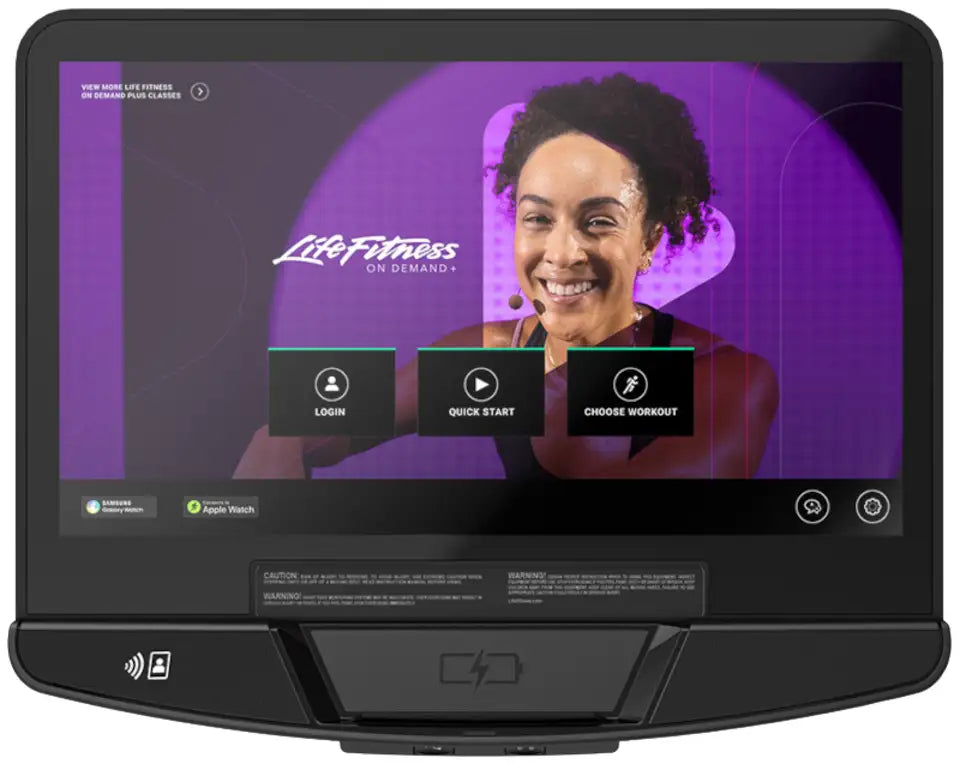

• SE4 24" Console — 24" Smart Touchscreen
• SE4 16" Console — 16" Smart Touchscreen

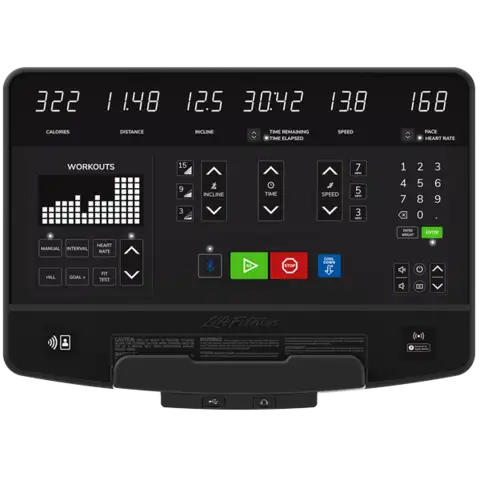

• SL Console — LED Console

KEY FEATURES

• Commercial-grade alternative-motion cross-trainer
• Unique 3-in-1 training experience: glide, stride, and climb
• 21 incline levels
• 100 resistance levels
• 24" stride length
• Oversized pedals
• 3" minimum spacing between foot pedals
• Cruiser Grips and Halo Grips
• Brushless eddy current brake with generator
• Two-stage drive system
• Up to 1,200 watts of resistance
• Central water bottle holder
• Dual utility trays and magazine rack
• USB port
• Touch and telemetry heart rate monitoring
• Maximum user weight: 400 lbs
• Transport wheels

PRODUCT SPECIFICATIONS

• Console Options: SE4 24", SE4 16", SL
• Dimensions (L × W × H): 76.5" × 33" × 62.5"
• Equipment Weight: 412 lbs / 187 kg
• Stride Length: 24"
• Step-Up Height: 5.25"
• Ramp Angle: 21 levels
• Resistance Levels: 100
• Maximum Resistance: Up to 1,200 watts
• Maximum User Weight: 400 lbs / 181 kg
• Colors: Arctic Silver, Diamond White, Black Onyx, Titanium Storm, Smooth Charcoal
• Resistance System: Two-stage drive with brushless eddy current brake and generator
