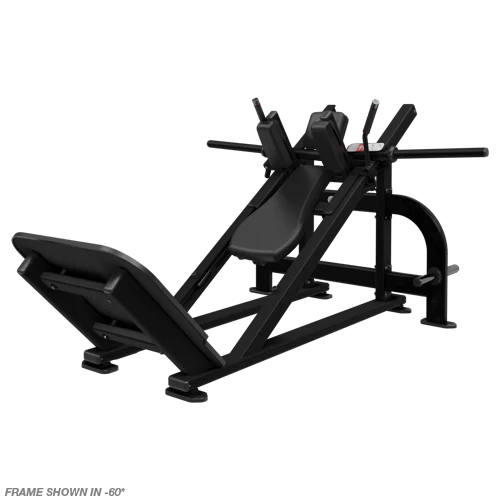

Nautilus Leverage Hack Squat

The Nautilus Leverage Premier Hack Squat is designed to provide a controlled and effective way to build quadriceps mass and lower-body strength. Its guided movement helps isolate the quads while reducing stress on the lower back, making it suitable for both experienced lifters and beginners.

The machine features a 35-degree angle for smooth, controlled movement and an oversized angled footplate that accommodates a variety of stances. Different foot positions can be used to emphasize the quadriceps, glutes, and hamstrings while maintaining a stable training position.

With a 900 lb (409 kg) maximum load capacity, an 80 lb (36 kg) carriage weight, integrated Olympic plate storage, and easy-to-reach safety stops, the Nautilus Leverage Hack Squat is built for progressive strength training in commercial fitness facilities.

Key Features:

• 35-Degree Machine Angle: Provides a controlled linear squat path designed for smooth, consistent movement.

• Oversized Angled Footplate: Accommodates users of different sizes and supports a variety of foot positions and stances.

• Adjustable Foot Positions: Allows users to vary their stance to train the quadriceps, glutes, and hamstrings.

• 900 lb (409 kg) Maximum Load Capacity: Built to accommodate progressive strength training and heavy loads.

• 80 lb (36 kg) Carriage Weight: Provides a stable starting carriage load.

• Two Start Options: Offers two starting positions for range-of-motion adjustment.

• Integrated Safety Stops: Easy-to-reach safety stops provide secure operation during training.

• Integrated User Handle: Helps users safely enter and exit the machine.

• Integrated Olympic Plate Storage: Keeps weight plates organized and easily accessible.

• Fixed Linear Path: Provides controlled movement throughout the squat.

• Color-Coded Adjustments: Pivot points and adjustment locations are clearly identified.

• Rubber Feet: Help protect the gym floor during use.

• Commercial Construction: Features an electrostatic powder-coated frame and durable commercial-grade components.

Specifications:

Product Dimensions

• Width: 72 in (182 cm)

• Length: 93 in (236 cm)

• Height: 47 in (119 cm)

• Overall Weight: 446 lbs (202 kg)

• Shipping Weight: 604 lbs (274 kg)

Adjustments & Movements

• User-Defined Range of Motion: Yes

• Movement: Fixed, linear path

• Machine Angle: 35 degrees

• Start Options: Two start options for range of motion

• Color-Coded Pivot Points & Adjustments: Yes

Frame & Construction

• Standard Frame Color: Black -60

• Standard Upholstery Color: Black

• Frame Finish: Electrostatic powder coating

• Custom Paint: Available with additional fees and extended lead times

• Custom Upholstery: Available with additional fees and extended lead times

• Custom Branding: Not available

• Bolt-Down Locations: Defined

• Integrated Leveling System: No; rubber feet provide floor protection

• Hardware: Hex / Button Head

• Tubing: Modern blend of square and round tubing; most are 3 or 2.5 mm / 11 ga

User Features

• Static Placards: Yes

• Multi-Language Placards: Available

• Animated Lenticular: No

• Safety Catch & Stops: Easy-to-reach and operate safety stops with integrated user handle for safe entry and exit

• Water Bottle Holder: No

• Phone Holder: No

• Grip Specifications: Rubber, smaller grips

• Foot Platform: Oversized angled foot platform designed to accommodate users of all sizes

• Contoured Pads: No

Plate-Loaded Specifications

• Plate Loaded: Yes

• Carriage Weight: 80 lb (36 kg)

• Maximum Load Capacity: 900 lb (409 kg)

• Weight Storage: Integrated Olympic plate storage

• Add-On Resistance: Available

SKU: 9NP-L1130-60BZS

The Nautilus Leverage Hack Squat provides a dedicated platform for progressive lower-body strength training with a controlled 35-degree linear movement, versatile foot positioning, heavy plate-loaded capacity, and integrated safety and storage features. Its commercial-grade construction makes it a strong addition to high-use strength facilities.
