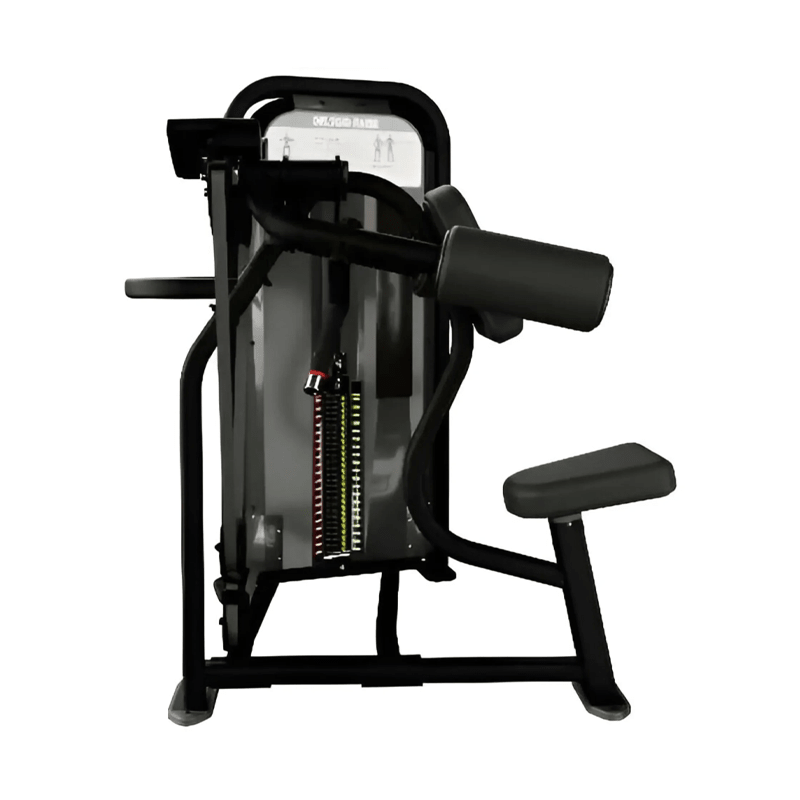

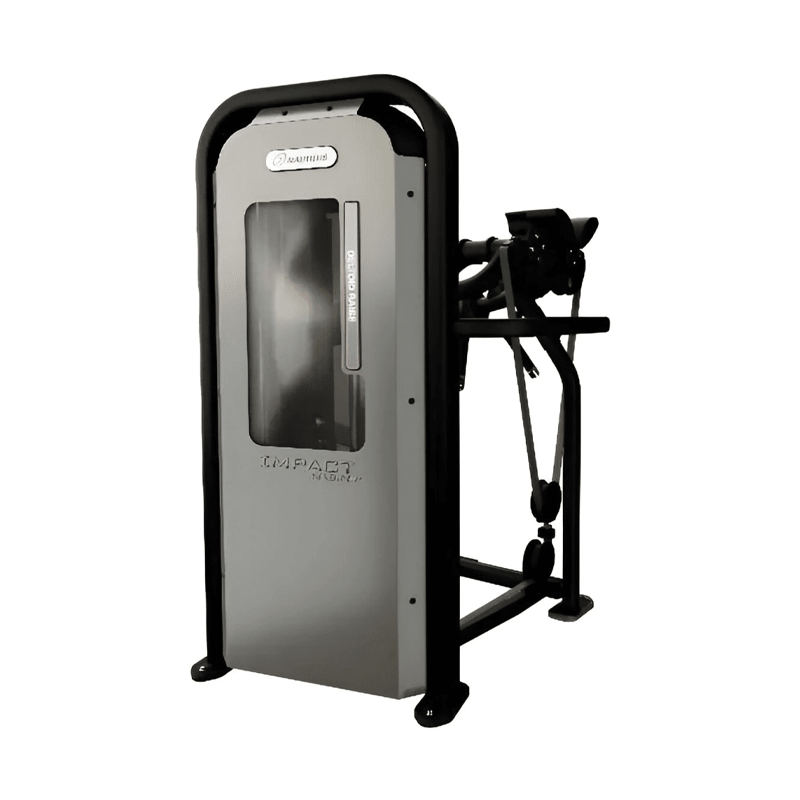

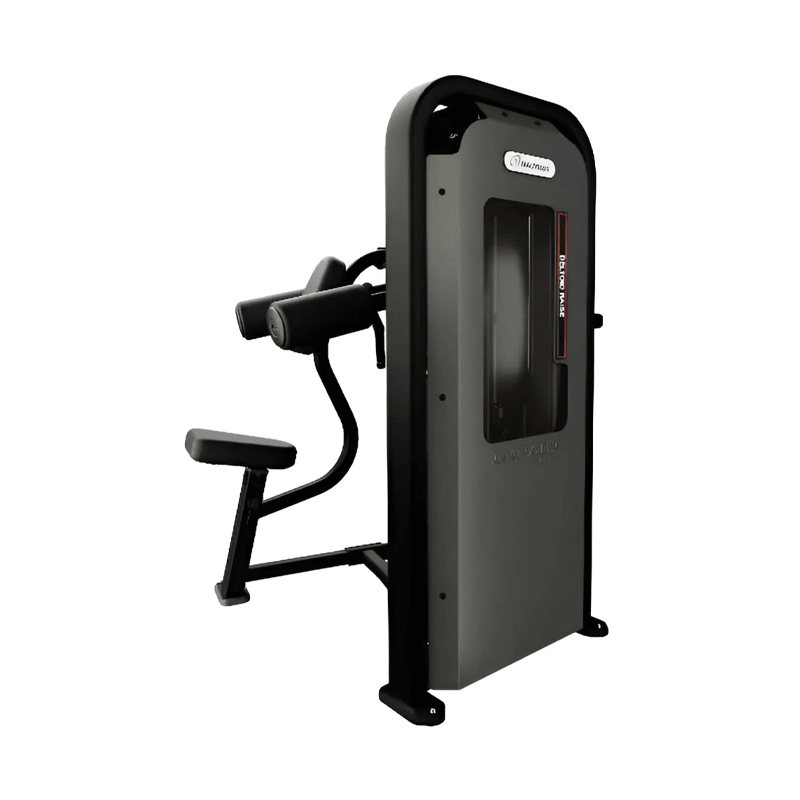

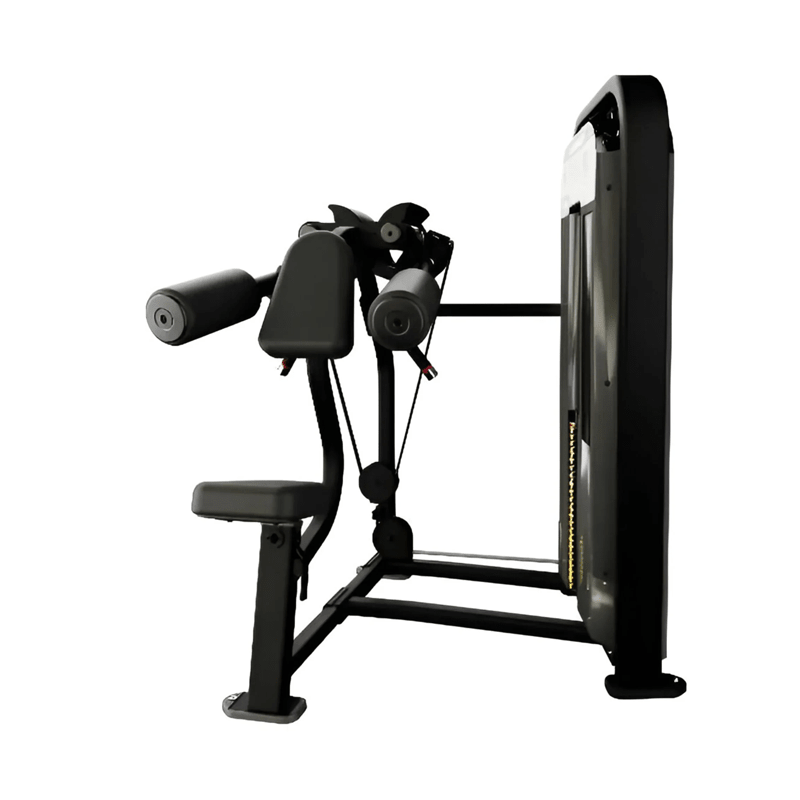

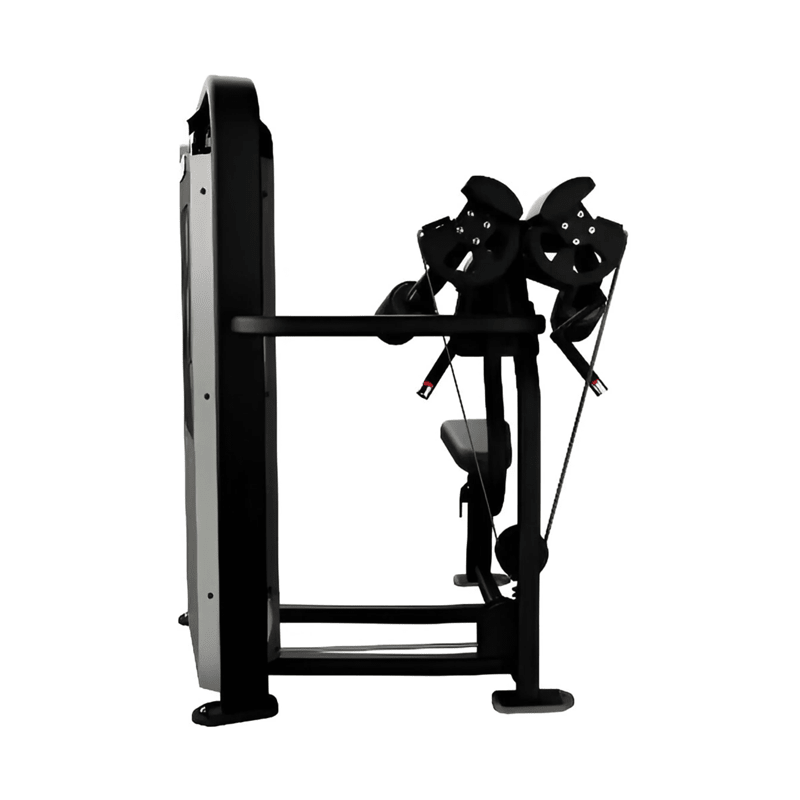

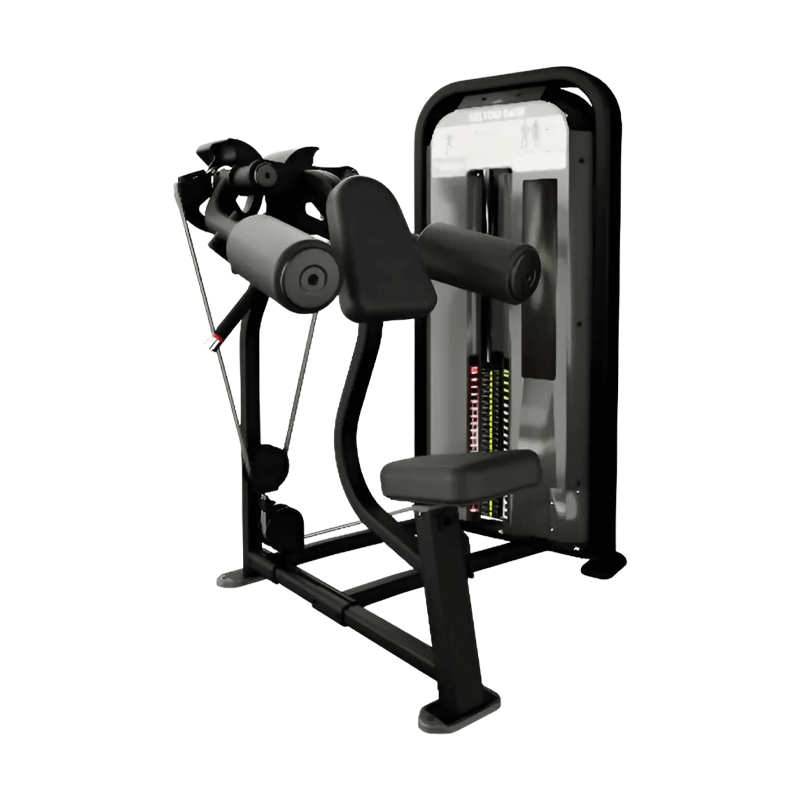

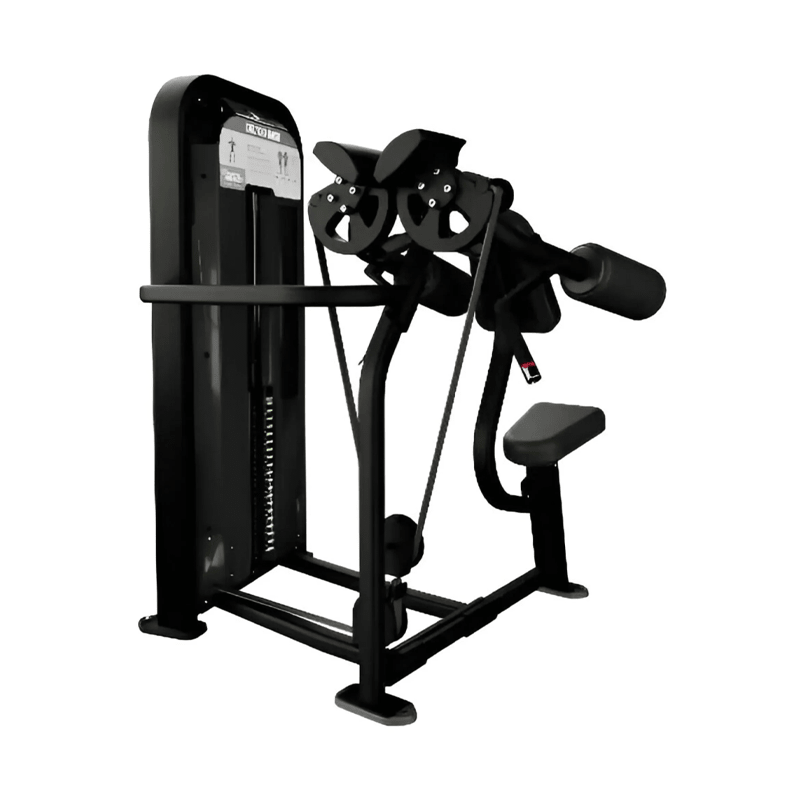

Nautilus Impact® Deltoid Raise

The Nautilus Impact® Deltoid Raise is a commercial strength machine designed to isolate the medial deltoids through a controlled lateral raise movement. Its guided movement path helps reduce momentum and maintain focus on the shoulders, making it an effective addition to upper-body strength circuits.

The Impact Strength line combines proven biomechanics with practical user features designed for efficient and progressive strength training. The Deltoid Raise features a biomechanically refined cam and true 1:1 weight ratio to provide consistent resistance throughout the movement.

The patented Lock N Load® weight selection system provides intuitive resistance selection, while the 5 lb incremental weight system allows users to make smaller adjustments for progressive training. A ratcheting seat adjustment and gravity-assisted positioning help simplify setup for different users.

Key Features:

• Designed to isolate the medial deltoids

• Controlled lateral raise movement

• Guided movement path to help reduce momentum

• Biomechanically refined cam

• True 1:1 weight ratio

• Patented Lock N Load® weight selection system

• 5 lb incremental weight system for optimal progression

• Ratcheting seat adjustment

• Gravity-assisted positioning

• Standard black frame with black upholstery

• Electrostatic powder-coated frame

Specifications

• Model: 9NA-S4302

• SKU: 9NA-S4302-60AGS

• Width: 46 in (117 cm)

• Length: 51 in (130 cm)

• Height: 60 in (152 cm)

• Overall Weight: 479 lb (217 kg)

• Shipping Weight: 560 lb (254 kg)

• Total Stack Weight: 130 lb (65 kg)

• Incremental Weight: 5 lb

• Frame Finish: Electrostatic powder coating

• Standard Frame Color: Black

• Standard Upholstery: Black

The Nautilus Impact Deltoid Raise combines focused shoulder isolation, proven biomechanics, and convenient weight selection to support progressive upper-body training in commercial gyms and fitness facilities.

 Download Product Sheet
