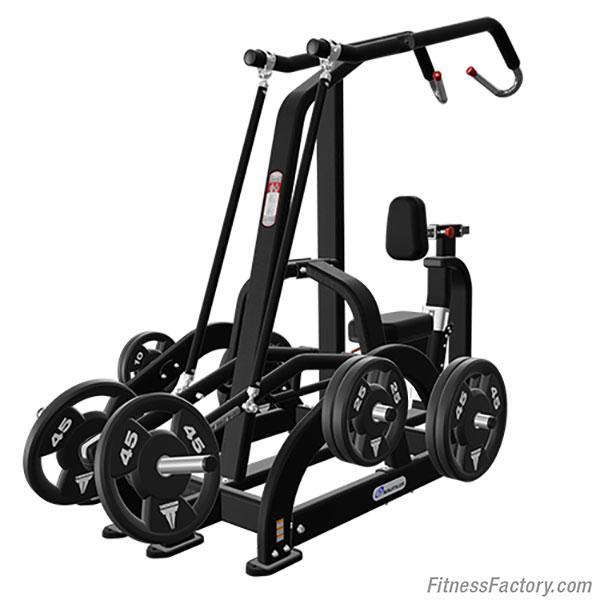

Nautilus Leverage High Row

The Nautilus Leverage Elite High Row targets the upper and mid-back muscles with a diverging pull motion that mimics natural movement. Its independent arm design and adjustable chest pad provide a personalized and biomechanically sound training experience.

Designed for facilities focused on targeted strength development, the Leverage Elite High Row delivers the feel of free-weight training in a plate-loaded format. Its lever and cam system, adjustable positioning, and integrated plate storage combine performance with practical commercial functionality.

Key Features

• Diverging Arm Motion: Promotes a natural range of movement to engage the lats and rear deltoids.

• Unilateral Training: Independent arm movement supports balanced development and increased muscle engagement.

• Adjustable Chest Pad: Supports proper user positioning and optimal pre-stretch.

• Precision Biomechanics: Lever and cam system provides resistance aligned with the body's strength curve.

• User-Defined Range of Motion: Allows users to customize their training position.

• Converging & Diverging Motion: Provides flexible movement with user pre-stretch adjustment.

• Gas-Assisted Adjustments: Gas assist shock and wrap-around handles support convenient seat-height adjustment.

• Integrated Plate Storage: Four weight horns keep plates close at hand and training areas organized.

• Stainless Steel Knurled Grips: Provide an Olympic barbell-style feel for a secure, performance-focused grip.

• Low Load Points: Enhance loading efficiency and convenience.

• Color-Coded Adjustments: Pivot points and adjustments are color coded for intuitive setup.

• Oversized Foot Platform: Rubber non-slip platform provides added stability.

• Contoured Pads: Contoured back pads are available on select machines with lumbar support.

• Safety Features: Safety catches and stops are included where applicable.

• Static Placard: Start/finish diagram with starting weight included.

• Multi-Language Placards: Multi-language placard options are available.

Product Specifications

Dimensions

• Length: 86 in (218 cm)

• Width: 51 in (130 cm)

• Height: 73 in (185 cm)

• Product Weight: 443 lb (201 kg)

• Shipping Weight: 582 lb (264 kg)

• Stack Weight: N/A — Plate Loaded

Adjustments & Movements

• Range of Motion: User-defined

• Path: Fixed

• Assisted Adjustments: Gas assist shock with wrap-around handles on all seat-height adjustments

• Color-Coded Pivot Points & Adjustments: Yes, on all units

• Movement: Unilateral and bilateral

• Motion: Converging and diverging

• Pre-Stretch: User-adjustable for optimal starting position, dependent on SKU

Frame Specifications

• Standard Frame Color: Matte Black (-60)

• Standard Upholstery: Black

• Frame Finish: Electrostatic powder coating

• Custom Paint: Available with additional fees and extended lead times

• Custom Upholstery: Available with additional fees and extended lead times

• Custom Branding: Not available

• Transmission: Belt & Lever Drive

• Bolt-Down Locations: Defined

• Integrated Leveling System: No; rubber feet provide floor protection

• Hardware: Hex / Button Head

• Tubing: Modern blend of square and round tubing; most 3 or 2.5 mm / 11 ga

User-Specific Information

• Static Placard: Start/finish diagram with starting weight included

• Multi-Language Placards: Available

• Safety Catch & Stops: Yes, where applicable

• Grip: Stainless steel knurled grip with red accent

• Foot Platform: Oversized rubber non-slip foot platform

• Contoured Pads: Contoured back pads on select machines with lumbar support

Plate-Loaded Specifications

• Plate Loaded: Yes

• Maximum Capacity: 270 lb per arm / 540 lb total

• Starting Resistance: 15 lb per arm

• Weight Storage: 4 weight horns for easy-access plate storage

Commercial Strength Training

The Nautilus Leverage Elite High Row combines diverging pulling mechanics, independent arm movement, adjustable chest-pad positioning, and plate-loaded resistance for focused upper- and mid-back training. Its durable commercial construction and integrated plate storage make it well suited for high-use strength facilities.

SKU: 9NP3-L3005-60BZS
