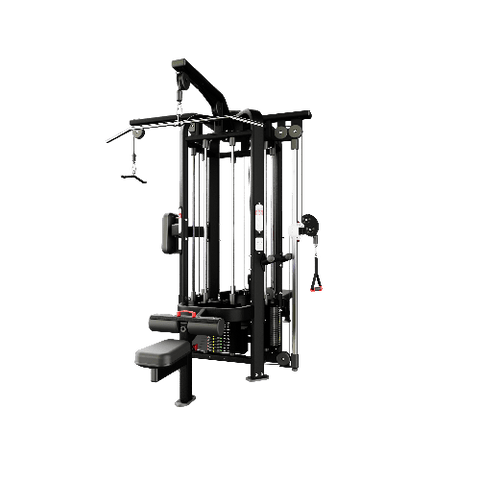

Nautilus Multi-Station

The Nautilus Multi-Station combines essential strength-training stations into an efficient, space-saving system designed for commercial fitness facilities. Available in 4, 5, 9, and 14 Station configurations, each system provides multiple cable-based exercises while making efficient use of available floor space.

Swiveling pulleys on the Lat Pull Down, Low Row, and Triceps Press provide flexible movement paths, while the fully adjustable Cable Crossover allows for a wide range of high-to-low cable positioning. Depending on the configuration, integrated pull-up stations provide additional upper-body training options.

The Nautilus Multi-Station also features Lock N Load® weight selection technology, allowing users to select resistance using an intuitive switch-based system instead of traditional selector pins.

Key Features:

• Lat Pull Down with Swivel Pulley – Provides flexible positioning and user-defined movement paths.

• Triceps Press with Swivel Pulley – Allows controlled cable-driven triceps training.

• Low Row with Swivel Pulley – Provides flexible positioning for seated rowing exercises.

• Fully Adjustable Cable Crossover – Provides high-to-low cable positioning combinations for versatile training.

• Integrated Pull-Up Stations – Included on applicable configurations for additional upper-body exercises.

• Stabilization Handles – Help provide balance and control during cable exercises.

• Lock N Load® Weight Selection – Color-coded switches engage the selected resistance without traditional selector pins.

• 5 lb Incremental Add-On Plates – Allow for smaller resistance adjustments.

• Cable-Driven System – Supports unilateral and bilateral movement.

• Independent Low Row Foot Platforms – Provide stabilization during seated rowing exercises.

• Rubber Feet – Help protect flooring and provide a stable equipment base.

• Commercial-Grade Construction – Features an electrostatic powder-coated frame and durable modern tubing design.

Specifications

Model Options:

9NP-M9601-60BZS
NAUTILUS MULTI-STATION — 4 STATION

9NP-M9605-60BZS
NAUTILUS MULTI-STATION — 5 STATION

9NP-M9619-60BZS
NAUTILUS MULTI-STATION — 9 STATION

9NP-M9620-60BZS
NAUTILUS MULTI-STATION — 14 STATION

Configuration Specifications:

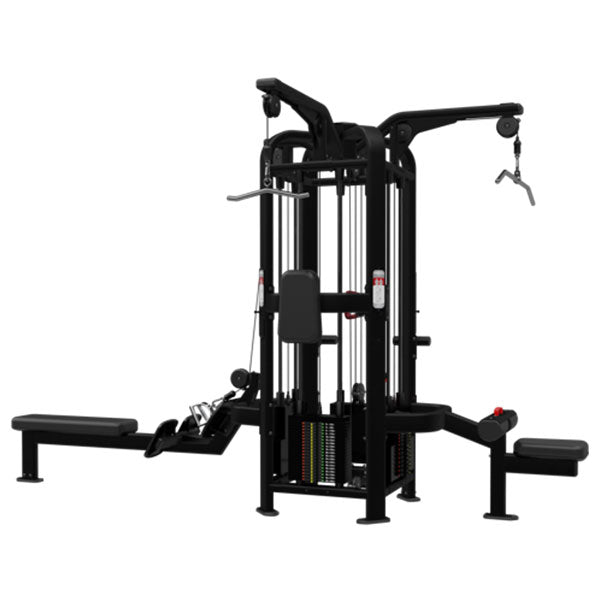

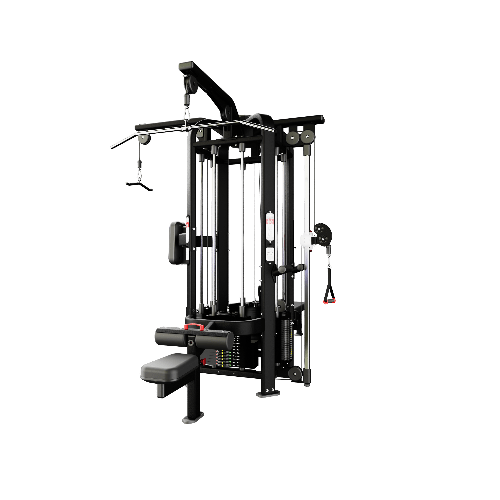

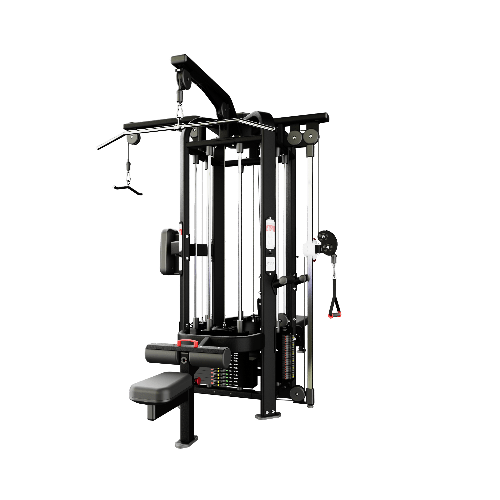

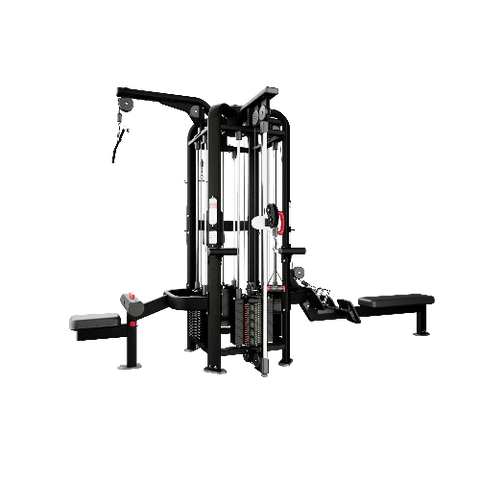

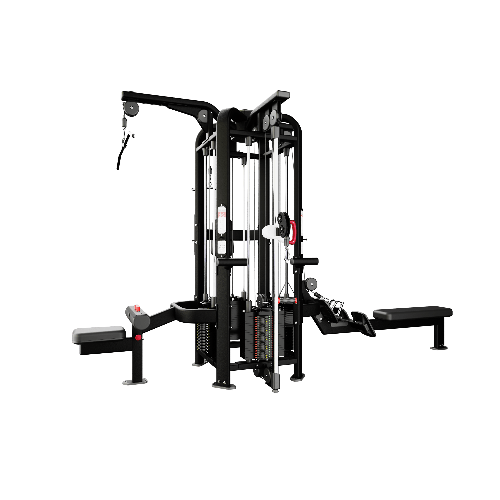

4 Station

• SKU: 9NP-M9601-60BZS

• Width: 75 in (190 cm)

• Length: 152 in (387 cm)

• Height: 94 in (239 cm)

• Overall Weight: 1,689 lb (766 kg)

• Total Stack Weight: 940.5 lb (427 kg)

Includes:

• 1 Lat Pull Down with swivel pulley

• 1 Triceps Press with swivel pulley

• 1 Low Row with swivel pulley

• 1 Fully adjustable Cable Crossover system

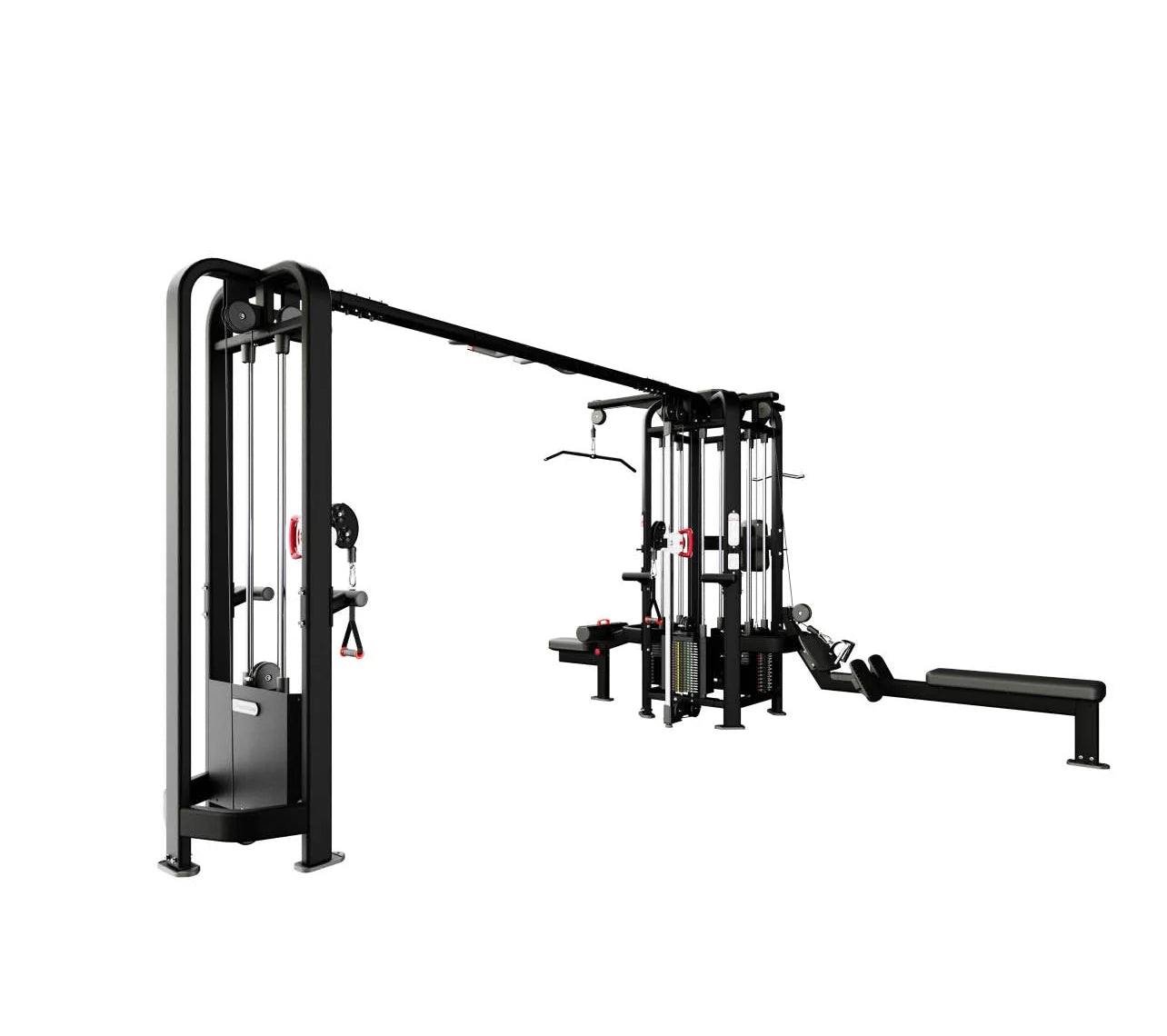

5 Station

• SKU: 9NP-M9605-60BZS

• Width: 200 in (508 cm)

• Length: 152 in (387 cm)

• Height: 94 in (239 cm)

• Overall Weight: 2,350 lb (1,066 kg)

• Total Stack Weight: 1,056 lb (479 kg)

Includes:

• 1 Lat Pull Down with swivel pulley

• 1 Triceps Press with swivel pulley

• 1 Low Row with swivel pulley

• 1 Fully adjustable Cable Crossover system

• 1 Integrated Pull-Up Station

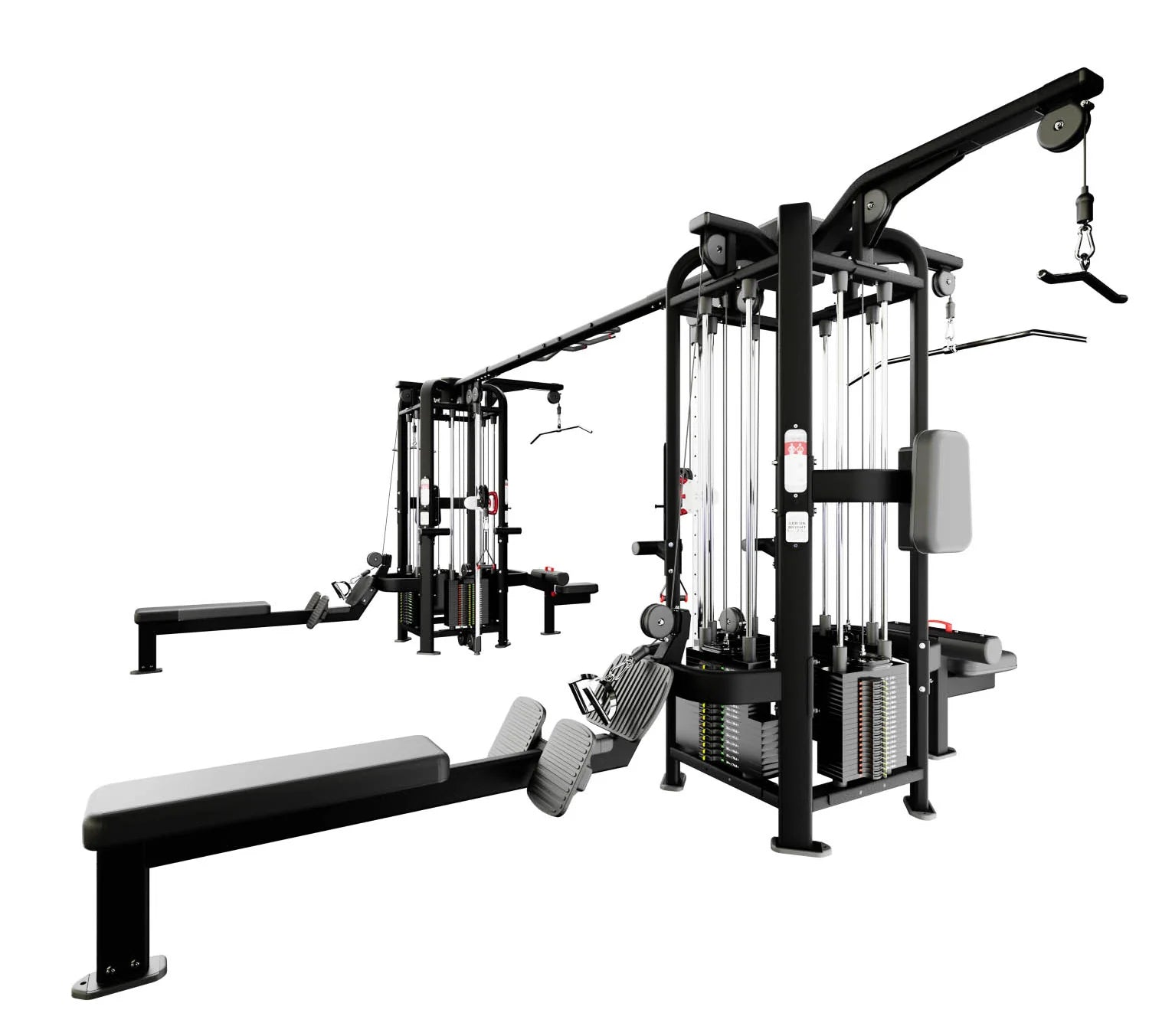

9 Station

• SKU: 9NP-M9619-60BZS

• Width: 240 in (609 cm)

• Length: 152 in (387 cm)

• Height: 94 in (239 cm)

• Overall Weight: 3,690 lb (1,673 kg)

• Total Stack Weight: 1,881 lb

Includes:

• 2 Lat Pull Downs with swivel pulleys

• 2 Triceps Press stations with swivel pulleys

• 2 Low Row stations with swivel pulleys

• Fully adjustable Cable Crossover system

• Integrated Pull-Up Stations

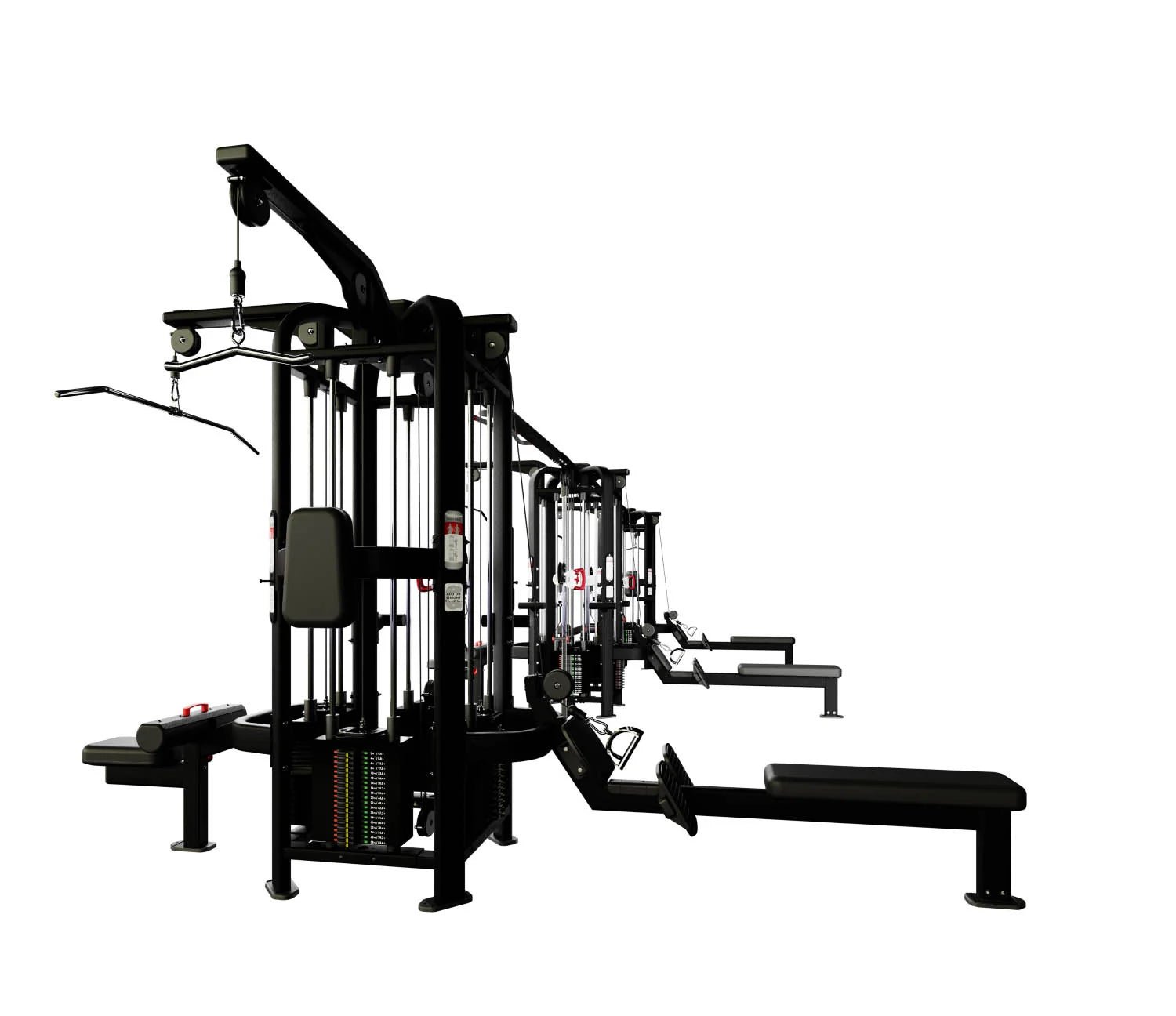

14 Station

• SKU: 9NP-M9620-60BZS

• Width: 395 in (1,003 cm)

• Length: 152 in (387 cm)

• Height: 94 in (239 cm)

• Overall Weight: 5,565 lb (2,524 kg)

• Total Stack Weight: 2,821.5 lb (1,280 kg)

Includes:

• 3 Lat Pull Downs with swivel pulleys

• 2 Triceps Press stations with swivel pulleys

• 3 Low Row stations with swivel pulleys

• 2 Fully adjustable Cable Crossover systems

• 2 Integrated Pull-Up Stations

Lock N Load® Technology

The Nautilus Lock N Load® weight selection system provides simple and intuitive resistance selection. Color-coded switches engage and disengage the selected weight through an internal mechanism, eliminating traditional selector pins.

Optional Accessories

Optional Mid-Row Station

The Mid-Row Station can replace any station on the Multi-Station system.

• SKU: 731-9475

Optional Handle Accessory Package

Additional handle options are available with the accessory package.

• SKU: 95-0590

Includes:

• Triceps rope

• Aluminum lat bar

• Aluminum curl bar

• Aluminum Low Row handle

• Single rope handle

• V-Triceps bar

• Ankle cuff

• Walking weight belt

Customization

• Custom paint available with additional fees and extended lead times

• Custom upholstery available with additional fees and extended lead times

• Custom branding available with additional fees and extended lead times
