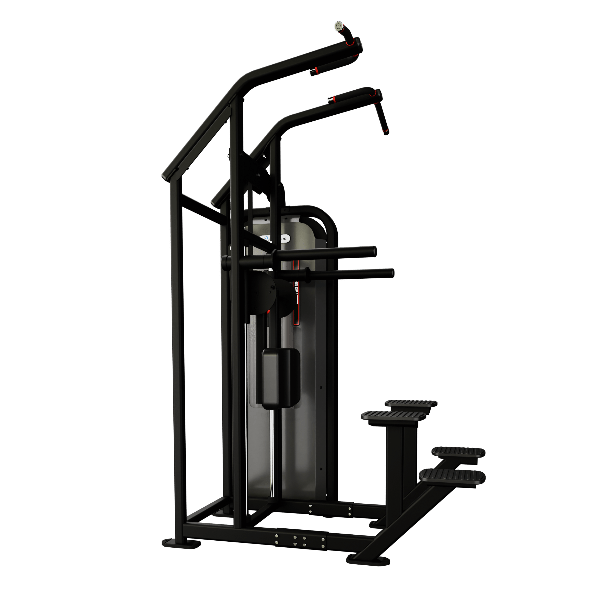

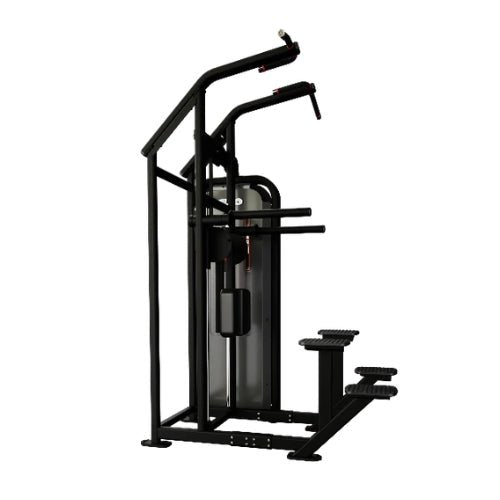

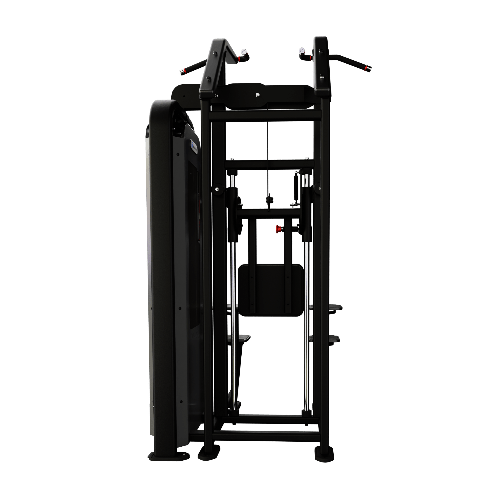

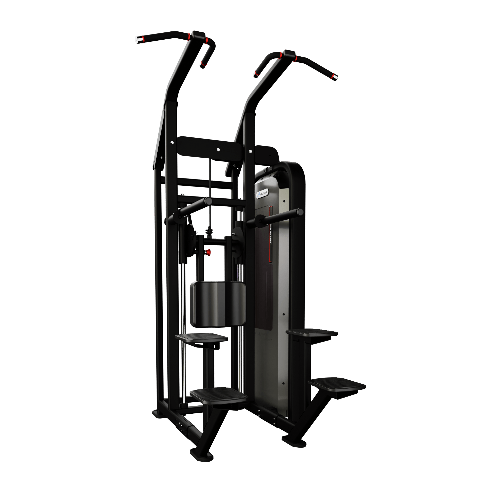

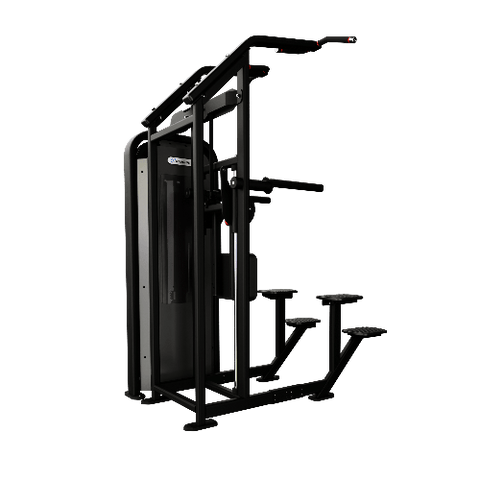

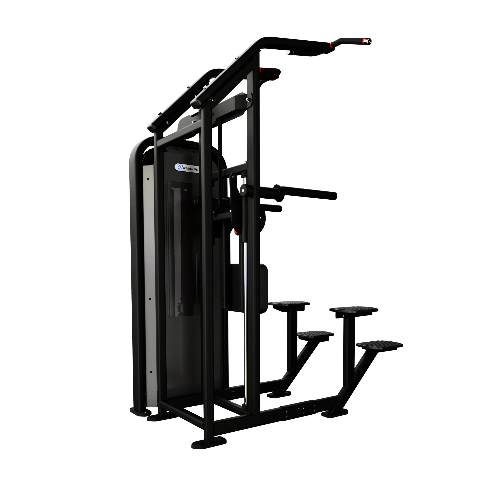

Nautilus Impact® Chin Dip Assist

The Nautilus Impact® Chin Dip Assist provides guided assistance for chin-up and dip exercises, helping users perform these challenging upper-body movements with controlled resistance. Part of the Impact Strength line, it combines proven biomechanics with practical adjustments designed for commercial fitness facilities.

The machine features a fixed-path movement, bilateral training, and a 1:1 pulley ratio. A user-defined range of motion and gravity-assisted positioning help users establish their preferred training setup.

The patented Lock N Load® weight selection system provides simple, intuitive resistance selection using color-coded switches. The 5 lb incremental weight system allows users to make smaller resistance adjustments as they progress.

Key Features:

• Assisted chin-up and dip training

• Fixed-path movement

• Bilateral movement

• User-defined range of motion

• 1:1 pulley ratio

• Pull-pin adjustment

• Gravity-assisted positioning

• 5 lb incremental weight system

• Patented Lock N Load® weight selection system

• Color-coded pivot points and adjustments

• Large rubber grips for pushing and smaller grips for pulling

• Static instructional placard

• Multi-language placard options available

• Clear weight-stack windows on both sides

Specifications:

• Model: 9NA-S6334

• SKU: 9NA-S6334-60AGS

• Width: 60 in (152 cm)

• Length: 50 in (127 cm)

• Height: 91 in (231 cm)

• Stack Weight: 200 lb (100 kg)

• Overall Weight: 776 lb (352 kg)

• Shipping Weight: 836 lb (379 kg)

• Incremental Weight: 5 lb

• Pulley Ratio: 1:1

• Movement: Bilateral

• Range of Motion: User defined

• Frame Color: Black

• Upholstery: Black

• Frame Finish: Electrostatic powder coating

• Integrated Leveling System: No; rubber feet for floor protection

• Hardware: Hex / Button Head

• Tubing Thickness: 11 ga

• Weight Stack Shroud: Inside and outside steel shrouds with clear windows on both sides

• Add-On Resistance: 5 lb incremental

• Custom Options: Paint, upholstery, and branding available for additional fees and extended lead times

The Nautilus Impact® Chin Dip Assist is a versatile commercial strength machine for facilities looking to provide assisted upper-body bodyweight training with straightforward adjustments and intuitive weight selection.
