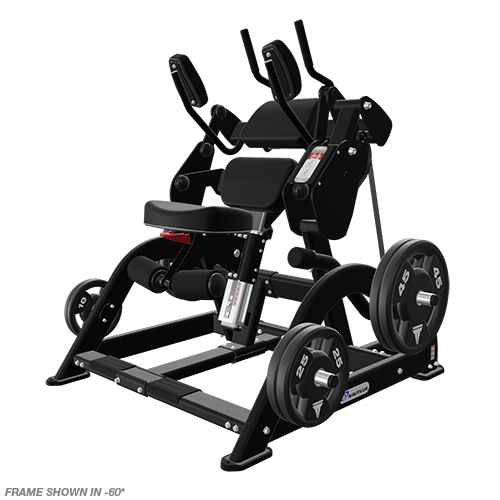

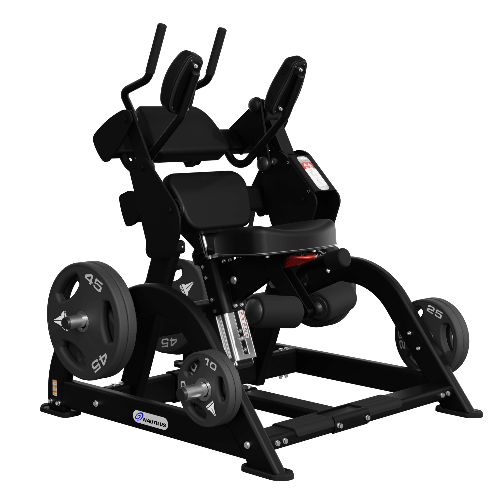

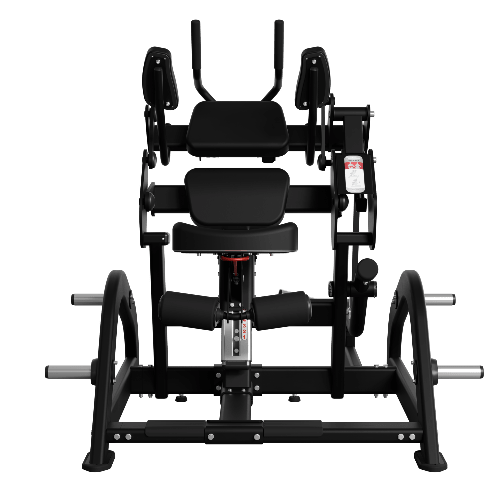

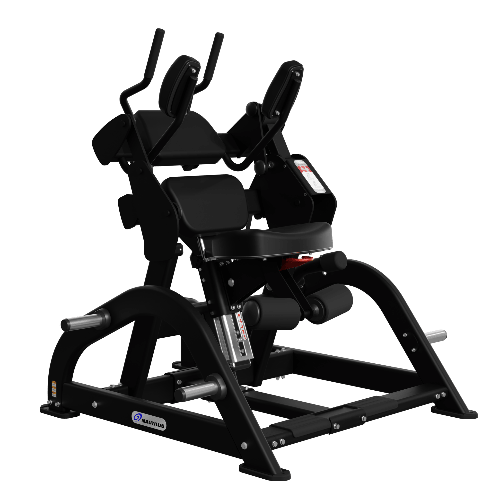

Nautilus Leverage Abdominal Crunch

The Nautilus Leverage Abdominal Crunch delivers targeted core engagement through an innovative clamshell-style design that replicates the original Nautilus experience. By combining upper and lower movement arms with a four-bar linkage for the upper arm, this machine supports spine alignment and dynamic resistance throughout the abdominal movement.

With low load points, ergonomic grips, gas-assisted adjustments, and biomechanically precise motion, the Leverage Elite Abdominal Crunch provides an effective plate-loaded abdominal training option for commercial strength facilities.

Key Features:

• Dual Movement Arms: Engages the upper and lower abdominals through synchronized arm paths.

• Four-Bar Linkage Motion: Mimics natural core rotation around the thoracic spine.

• Clamshell-Style Design: Replicates the original Nautilus abdominal training experience.

• User-Defined Range of Motion: Allows users to customize their training position.

• Gas-Assisted Adjustments: Gas assist shock and wrap-around handles support convenient seat-height adjustments.

• Converging & Diverging Motion: Provides converging and diverging movement with user pre-stretch adjustment.

• Integrated Plate Storage: Four weight horns keep plates organized and easily accessible.

• Stainless Steel Knurled Grips: Provide a performance-focused grip with a red accent.

• Low Load Points: Support convenient and user-friendly plate loading.

• Color-Coded Adjustments: Pivot points and adjustments are color coded for intuitive setup.

• Oversized Foot Platform: Rubber non-slip platform provides added stability.

• Contoured Pads: Contoured back pads are available on select machines with lumbar support.

• Safety Features: Safety catches and stops are included where applicable.

• Static Placard: Includes a start/finish diagram with starting weight.

• Multi-Language Placards: Multi-language placard options are available.

Product Specifications

Dimensions

• Length: 62 in (157 cm)

• Width: 61 in (156 cm)

• Height: 61 in (156 cm)

• Product Weight: 461 lb (209 kg)

• Shipping Weight: 611 lb (277 kg)

• Stack Weight: N/A — Plate Loaded

Adjustments & Movements

• Range of Motion: User-defined

• Path: Fixed

• Assisted Adjustments: Gas assist shock with wrap-around handles on all seat-height adjustments

• Color-Coded Pivot Points & Adjustments: Yes, on all units

• Movement: Unilateral and bilateral

• Motion: Converging and diverging

• Pre-Stretch: User-adjustable for optimal starting position, dependent on SKU

Frame Specifications

• Standard Frame Color: Matte Black (-60)

• Standard Upholstery: Black

• Frame Finish: Electrostatic powder coating

• Custom Paint: Available with additional fees and extended lead times

• Custom Upholstery: Available with additional fees and extended lead times

• Custom Branding: Not available

• Transmission: Belt & Lever Drive

• Bolt-Down Locations: Defined

• Integrated Leveling System: No; rubber feet provide floor protection

• Hardware: Hex / Button Head

• Tubing: Modern blend of square and round tubing; most 3 or 2.5 mm / 11 ga

User-Specific Information

• Static Placard: Start/finish diagram with starting weight included

• Multi-Language Placards: Available

• Safety Catch & Stops: Yes, where applicable

• Grip: Stainless steel knurled grip with red accent

• Foot Platform: Oversized rubber non-slip foot platform

• Contoured Pads: Contoured back pads on select machines with lumbar support

Plate-Loaded Specifications

• Plate Loaded: Yes

• Maximum Capacity: 270 lb / 540 lb total

• Starting Resistance: 15 lb

• Weight Storage: 4 weight horns for easy-access plate storage

Commercial Core Training

The Nautilus Leverage Elite Abdominal Crunch combines dual movement arms, four-bar linkage, adjustable positioning, and plate-loaded resistance to provide focused abdominal training. Its durable commercial construction, ergonomic design, and integrated plate storage make it well suited for high-use strength facilities.

SKU: 9NP3-L5003-60BZS
