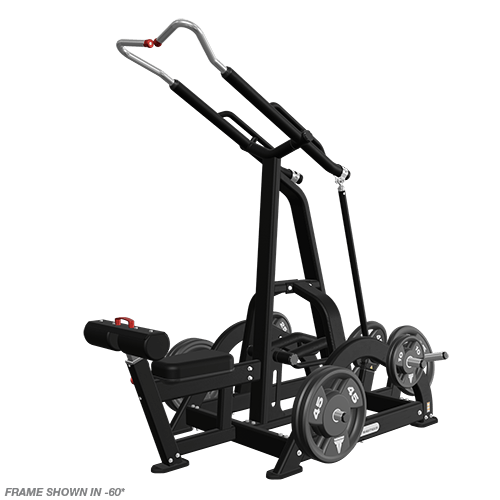

Nautilus Leverage Lat Pulldown

The Nautilus Leverage Lat Pull Down provides a unique plate-loaded experience with a diverging arm motion to target the lats, upper back, and biceps. Its independent arm design allows for bilateral or unilateral training, while the close-grip start position helps establish an effective starting position for lat-focused training.

Designed for strength-focused environments, the Leverage Elite Lat Pull Down balances performance, safety, ergonomics, and durable commercial construction. Adjustable seat and thigh pad positioning provides stabilization and comfort during pulling movements, while the leverage system delivers controlled resistance throughout the exercise.

Key Features:

• Diverging Pull Path: Diverging arm motion supports a natural pulling movement with a close-grip start position.

• Lat & Upper Back Training: Designed to target the lats, upper back, and biceps.

• Unilateral Capability: Independent arms allow users to train each arm individually or together.

• Adjustable Seat & Thigh Pad: Helps provide proper stabilization and user positioning.

• User-Defined Range of Motion: Allows users to customize their training position.

• Converging & Diverging Motion: Provides flexible movement with user pre-stretch adjustment.

• Gas-Assisted Adjustments: Gas assist shock and wrap-around handles support convenient seat-height adjustment.

• Integrated Plate Storage: Four weight horns keep plates organized and easily accessible.

• Stainless Steel Knurled Grips: Provide an Olympic bar-style grip feel and secure handling.

• Low Load Points: Simplify plate changes and support a convenient setup.

• Color-Coded Adjustments: Pivot points and adjustments are color coded for intuitive setup.

• Oversized Foot Platform: Rubber non-slip platform provides added stability.

• Contoured Pads: Contoured back pads are available on select machines with lumbar support.

• Safety Features: Safety catches and stops are included where applicable.

• Static Placard: Includes a start/finish diagram with starting weight.

• Multi-Language Placards: Multi-language placard options are available.

Product Specifications:

Dimensions

• Length: 81 in (206 cm)

• Width: 51 in (130 cm)

• Height: 80 in (203 cm)

• Product Weight: 406 lb (184 kg)

• Shipping Weight: 541 lb (245 kg)

• Stack Weight: N/A — Plate Loaded

Adjustments & Movements

• Range of Motion: User-defined

• Path: Fixed

• Assisted Adjustments: Gas assist shock with wrap-around handles on all seat-height adjustments

• Color-Coded Pivot Points & Adjustments: Yes, on all units

• Movement: Unilateral and bilateral

• Motion: Converging and diverging

• Pre-Stretch: User-adjustable for optimal starting position, dependent on SKU

Frame Specifications:

• Standard Frame Color: Matte Black (-60)

• Standard Upholstery: Black

• Frame Finish: Electrostatic powder coating

• Custom Paint: Available with additional fees and extended lead times

• Custom Upholstery: Available with additional fees and extended lead times

• Custom Branding: Not available

• Transmission: Belt & Lever Drive

• Bolt-Down Locations: Defined

• Integrated Leveling System: No; rubber feet provide floor protection

• Hardware: Hex / Button Head

• Tubing: Modern blend of square and round tubing; most 3 or 2.5 mm / 11 ga

User-Specific Information:

• Static Placard: Start/finish diagram with starting weight included

• Multi-Language Placards: Available

• Safety Catch & Stops: Yes, where applicable

• Grip: Stainless steel knurled grip with red accent

• Foot Platform: Oversized rubber non-slip foot platform

• Contoured Pads: Contoured back pads on select machines with lumbar support

Plate-Loaded Specifications:

• Plate Loaded: Yes

• Maximum Capacity: 270 lb per arm / 540 lb total

• Starting Resistance: 15 lb per arm

• Weight Storage: 4 weight horns for easy-access plate storage

Commercial Strength Training

The Nautilus Leverage Elite Lat Pulldown combines independent arm movement, a diverging pull path, adjustable positioning, and plate-loaded resistance for focused back and upper-body training. Its durable construction and integrated storage make it well suited for high-use commercial strength facilities.

SKU: 9NP3-L3003-60BZS
