Nautilus Standing Calf Raise

The Nautilus Leverage Premier Standing Calf machine targets both the inner and outer calf muscles, including the gastrocnemius and soleus, with greater emphasis on the gastrocnemius due to the extended leg position. It is designed to support overall calf size, strength, definition, and athletic performance.

The machine features a curved foot platform that enhances calf hyperflexion while reducing pressure on the ball of the foot. Swivel shoulder pads provide comfort during training, while the precise nearly 1:1 weight ratio delivers consistent resistance.

With a 540 lb (245 kg) maximum load capacity and integrated Olympic plate storage, the Nautilus Leverage Standing Calf combines heavy-load training capability, comfort, durability, and convenient weight management for commercial fitness facilities.

Key Features:

• Curved Foot Platform: Enhances calf hyperflexion while reducing pressure on the ball of the foot.

• Swivel Shoulder Pads: Provides comfort and support during standing calf raises.

• Nearly 1:1 Weight Ratio: Provides precise and reliable resistance for consistent training.

• 540 lb (245 kg) Maximum Load Capacity: Built to accommodate heavy loads for a wide range of users.

• Integrated Olympic Plate Storage: Keeps weight plates organized and within easy reach.

• Fixed Path of Motion: Uses an upper-body pivot bench to provide a controlled standing calf movement.

• Easy-Operate Safety Stop: Includes a safety stop and low load points for safe and simple use.

• Contoured Foot Platform: Designed to accommodate users of different sizes.

• Rubber Grips: Smaller rubber grips provide a secure hand position.

• Plate-Loaded Design: Uses a 45 lb (20 kg) boom with additional resistance available up to the maximum load capacity.

• Commercial Construction: Built with an electrostatic powder-coated frame and durable components for fitness facilities.

Specifications:

Product Dimensions

• Width: 43 in (110 cm)

• Length: 73 in (186 cm)

• Height: 81 in (206 cm)

• Product Weight: 463 lbs (210 kg)

• Shipping Weight: 518 lbs (235 kg)

• Maximum User Weight: 350 lbs (189 kg)

Adjustments & Movement

• User-Defined Range of Motion: No

• Movement: Fixed path of motion with upper-body pivot bench

• Safety Stop: Easy to operate

• Low Load Points: Yes

Frame & Construction

• Standard Frame Color: Black -60

• Standard Upholstery Color: Black

• Frame Finish: Electrostatic powder coating

• Custom Paint/Upholstery: Available with additional fees and extended lead times

• Custom Branding: Not available

• Bolt-Down Locations: Defined

• Integrated Leveling System: No; rubber feet provide floor protection

• Hardware: Hex / Button Head

• Tubing: Modern blend of square and round tubing; most are 3 or 2.5 mm / 11 ga

User Features:

• Static Placards: Yes

• Multi-Language Placards: Available

• Safety Catch & Stops: Easy-to-operate safety stop

• Grip: Rubber, smaller grips

• Foot Platform: Contoured to accommodate users of all sizes

• Contoured Pads: No

• Water Bottle / Phone Holder: No

Plate-Loaded Specifications:

• Plate Loaded: Yes

• Plate-Loaded Boom: 45 lb (20 kg)

• Maximum Load Capacity: 540 lb (245 kg)

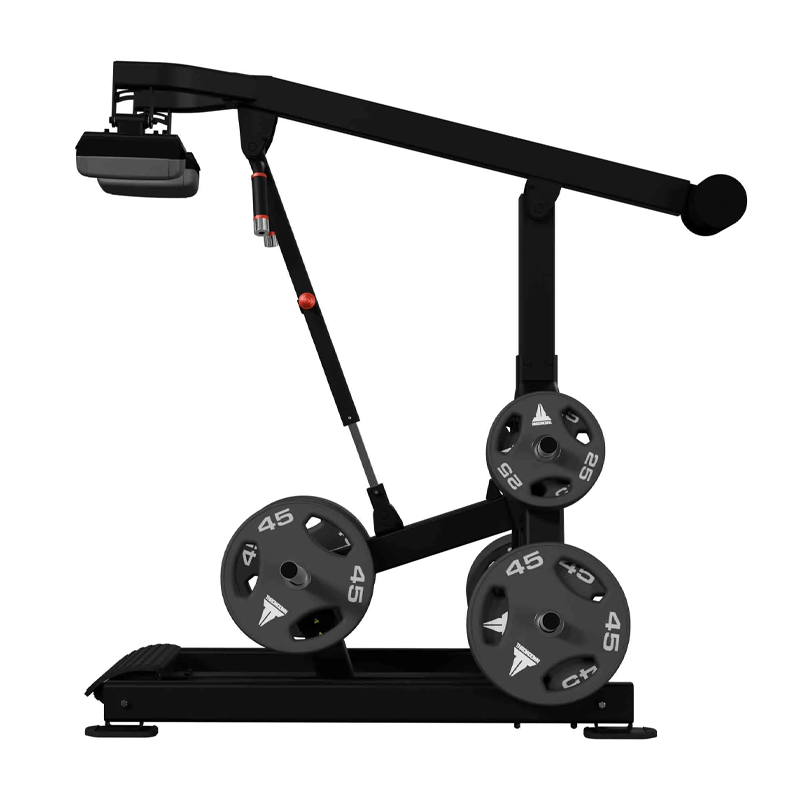

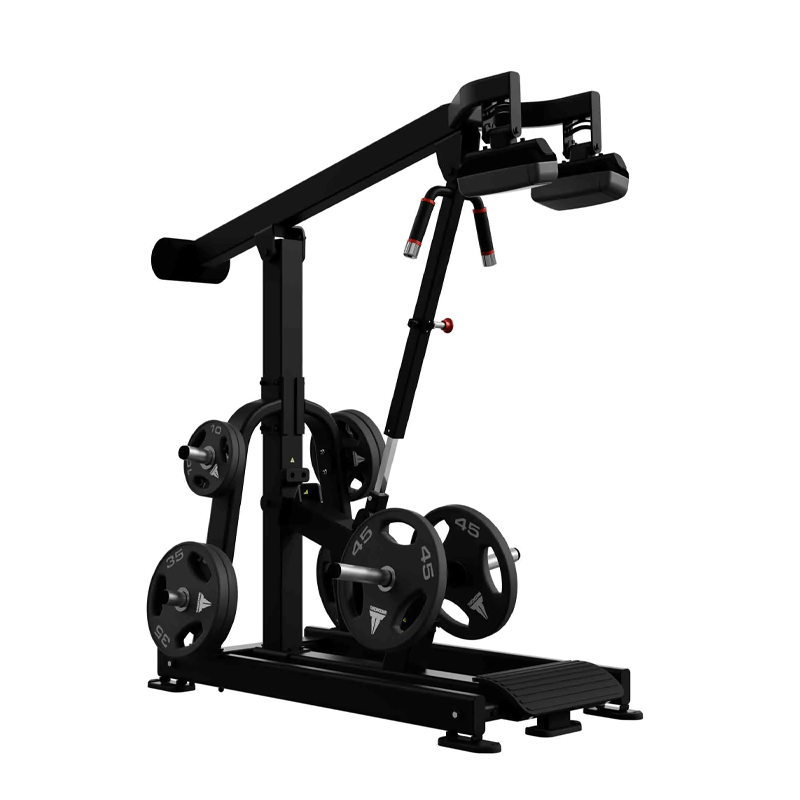

• Weight Storage: Integrated Olympic plate storage

• Add-On Resistance: Available

SKU: 9NP-L1112-60BZS

The Nautilus Leverage Standing Calf is designed for facilities looking for a dedicated commercial calf machine with heavy-load capability, controlled movement, comfortable shoulder support, and convenient integrated plate storage. Its curved foot platform and standing position provide an effective setup for focused gastrocnemius and soleus training.
