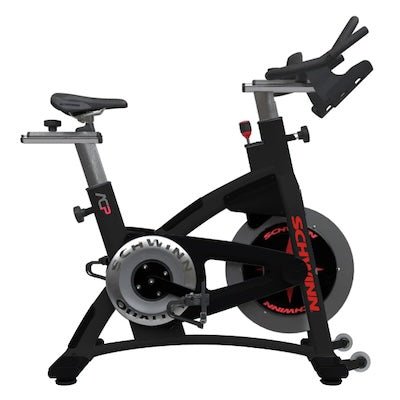

Schwinn AC Performance With Carbon Blue Indoor Bike (Black, Morse Taper) - 2026

INNOVATION, UNCHAINED

Introducing Carbon Blue™ technology – a belt drive system combining unmatched durability with the authentic outdoor biking feel you expect from Schwinn. For nearly 20 years, Schwinn carbon blue belt drive bikes have led the indoor cycling industry. Even as other companies began to use belt drives, we stayed true to our technology for one simple reason: belt drives felt nothing like riding an outdoor bike. Today, all of that is changing. There is a revolutionary new belt drive taking the outdoor bike community by storm, and we’ve adapted it and brought it indoors on the A.C. Performance. This next generation system delivers guaranteed durability and virtually zero maintenance, without sacrificing the Schwinn authentic cycling feel that riders know and love.

Carbon Blue™

Several years ago, a company named Gates introduced a concept never before seen on outdoor bikes – a belt drive that performed like a chain. Their innovative system – called Carbon Drive™– features a carbon fiber reinforced belt with teeth for maximum durability and true bike performance. Over time, this has transitioned from a novelty system to a mainstream solution used on hundreds of outdoor bike models today. Over the past year, we have worked with Gates to adapt this revolutionary technology to our A.C. Performance bike. The result is a new belt-based drive system that combines the maintenance-free durability and performance of a belt with the authentic-ride feel of a chain. We call it Carbon Blue ™ – those who ride it call it “incredible.”

Learn More About Carbon Blue Technology

Benefits of Carbon Blue™

Low Maintenance

• Belt never requires lubrication
• Tension never needs to be adjusted

Real Bike Feel

• High-inertia drive train provides momentum and feel of chain drive
• Toothed belt provides rider feedback and road feel

Features

• High Performance handlebars support all rider needs, from comfort to high-performance
• Virtual Contact™ Magnetic resistance system allows for smooth, consistent control
• Schwinn Fit system enables a wide range of seat and handlebar adjustments to provide a safe and comfortable setup for a wide range of riders

All Schwinn A.C.™ indoor bikes come standard with Double Link pedals with SPD and toe-clip combinations to accommodate both cycling cleats and regular athletic shoes.

Specifications

• Product Dimensions: 54" L x 21" W x 51" H (137cm x 53cm x 130cm)
• Product Weight: 102 lbs (46 kg)
• Max User Weight: 350 lbs (159 kg)
• Recommended User Height: 4’11” to 6’8″ (150 TO 203 cm)
• Frame Finish: Aluminum
• Frame Color: Matte Black
• Seat Slider, Handlebars and Hardware Materials: Aluminum
• Drive System: Belt drive using Carbon Blue™ technology
• User Compatible Size Range: Typically 4'11" to 6'8" (150 to 203 cm) tall
• MPower™ Echelon Console Compatible: Yes
• Q Factor: 170mm
• This unit requires Morse Taper Pedals

5-Year Warranty

• Carbon fiber reinforcement makes this belt incredibly durable
• The longest warranty of any belt or chain on the market

Commercial Warranty

Frame: 10 years Mechanical: 2 years Wear items: 6 months Labor: 1 year
