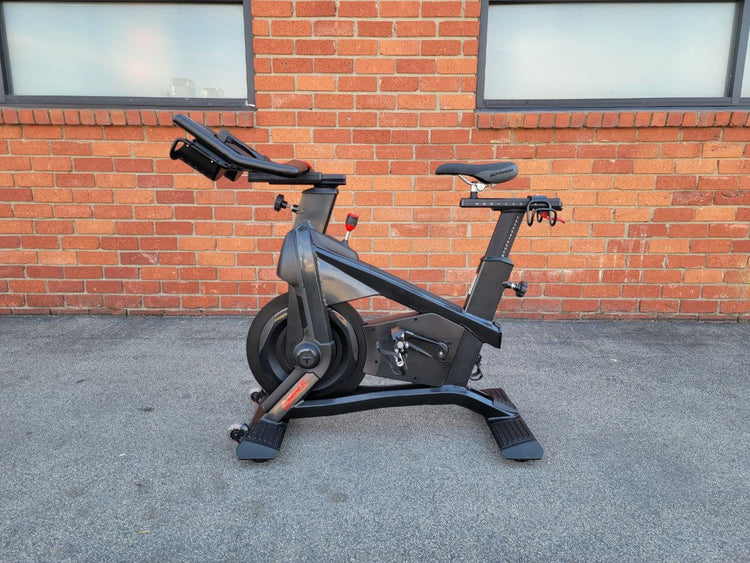

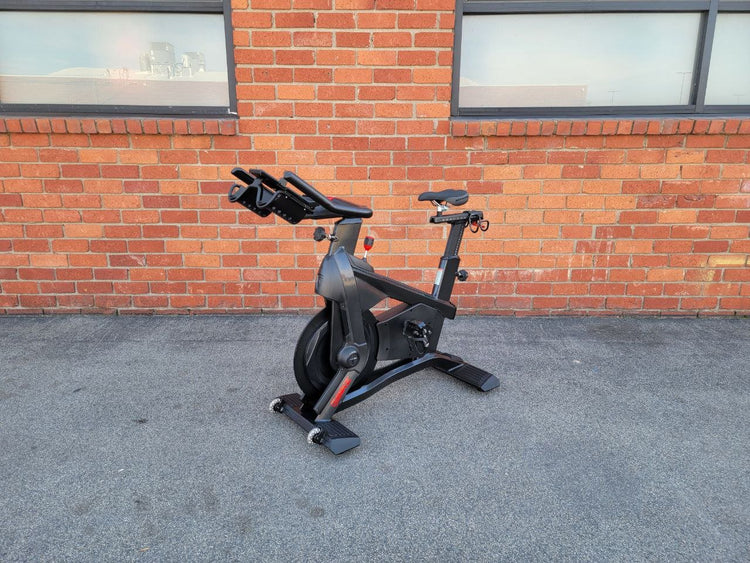

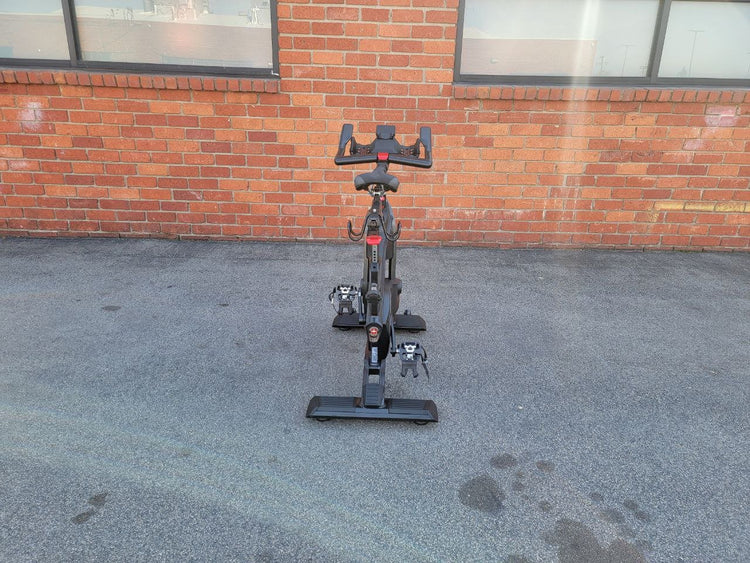

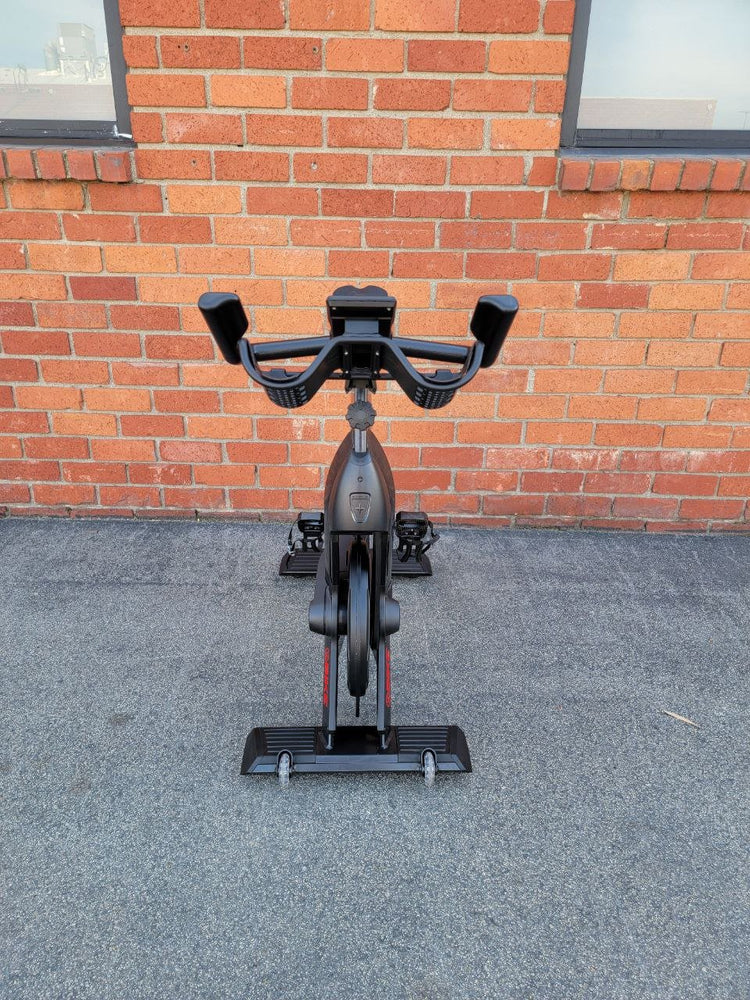

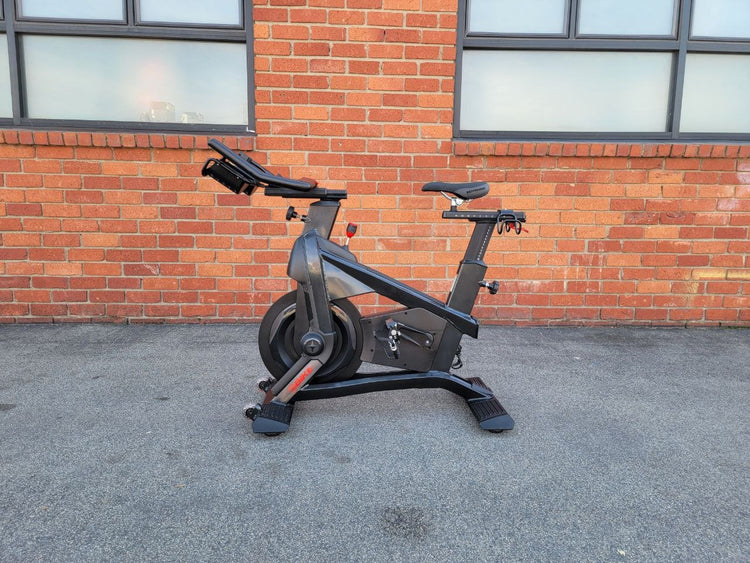

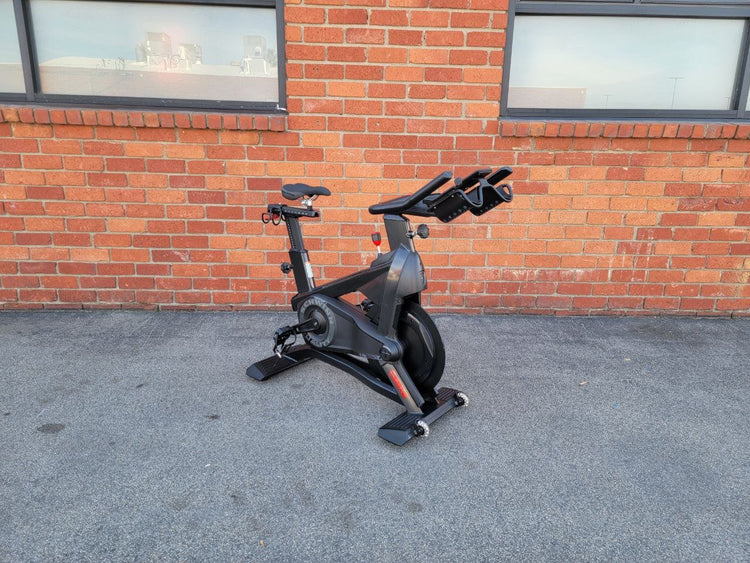

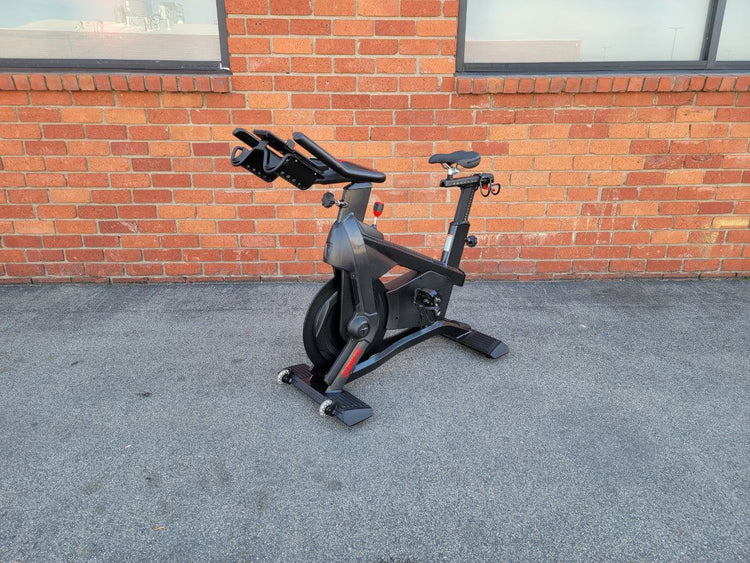

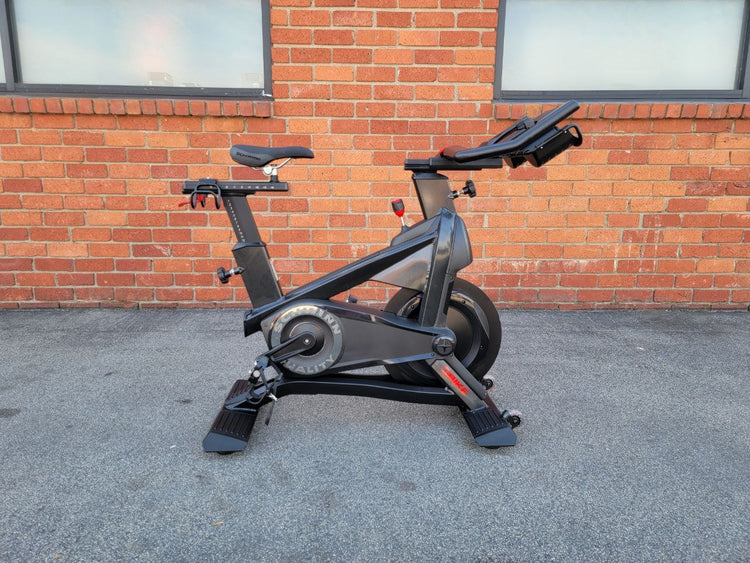

Schwinn Group Cycle, Xa - Demo

The X Bikes offer a tech-free experience ideal for music-focused group cycling studios as well as multi-unit housing and hospitality fitness centers that do not offer guided classes. With optional 4iiii powermeter, members and guests can bring their phone or personal fitness device to track and store their personal data.

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credits for continued education from ACE, AFAA, NASM and CIMPSA.

TECHNOLOGY

BRING YOUR OWN CONSOLE (BYOC): Add a 4iiii powermeter to use personal fitness tracking apps to BYOC via BLE, or broadcast Power/RPM to an in-studio heads-up group display via ANT+

FEATURES:

• Authentic, Toothed Carbon Belt on Xa 7470
• Integrated phone/tablet holder
• Morse Taper pedals and bottom bracket for increased durability and reliability

SPECIFICATIONS:

• PRODUCT FOOTPRINT: (LXW) 42.5 in x 20.6 in (1076.5 mm x 525 mm)
• MAX PRODUCT LENGTH: 56 in (1420 mm)
• FRAME MATERIAL: Aluminum
• FRAME FINISH: Powder-coated
• FRAME COLOR: Quantum Silver
• DRIVE SYSTEM/DRIVE TRAIN: Authentic, toothed carbon belt Xa 9-7470-QINTP0
• RESISTANCE SYSTEM: 6 Magnet Non-Contact Magnetic Resistance
• Q-FACTOR: 168 mm
• HANDLE BAR: Universal
• SADDLE: AC Saddle
• FORE/AFT ADJUSTMENT SYSTEM: Lever micro-adjustment
• HEIGHT ADJUSTMENT SYSTEM: Pop-Pin
• FLYWHEEL: Aluminum, thin profile
• PEDALS: Morse Taper Double Link - SPD and athletic shoe cage
• USER HEIGHT RANGE: 4'11 to 6'8 (150 cm to 203 cm)
• MAX USER WEIGHT: 300 lb (136 kg)
• COMPATIBLE CONSOLES

COMPATIBLE ACCESSORIES AND UPGRADES (not included):

• Pedals:

            - Triple Link KEO-compatible, Morse Taper (718-5869),

            - Triple Link Delta-compatible, Morse Taper (740-8689)

• Bike Numbering Tags: 727-0161
• Dumbbell Holders: 700-0504-35

Powermeter Crank: 718-6306
