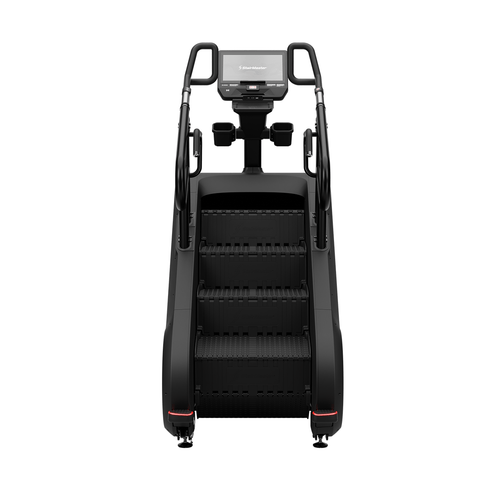

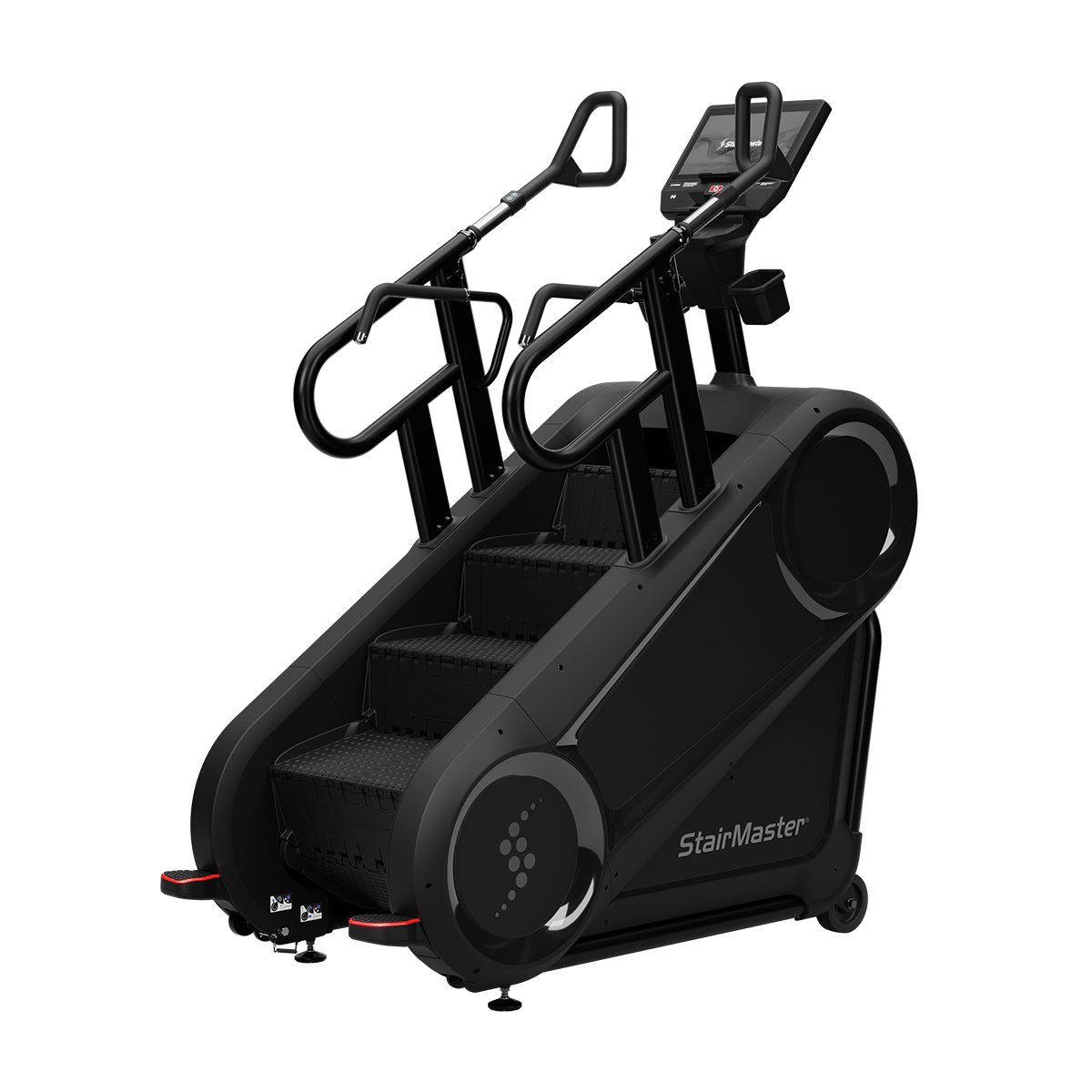

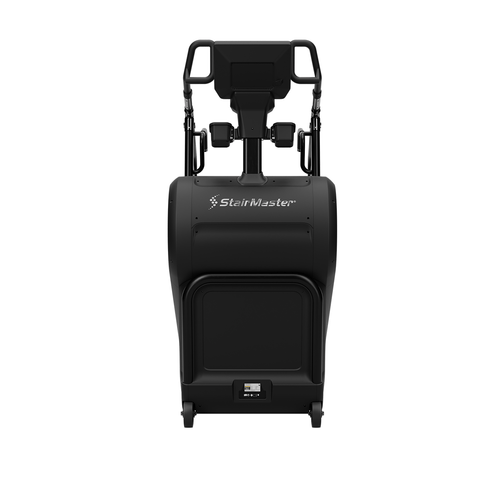

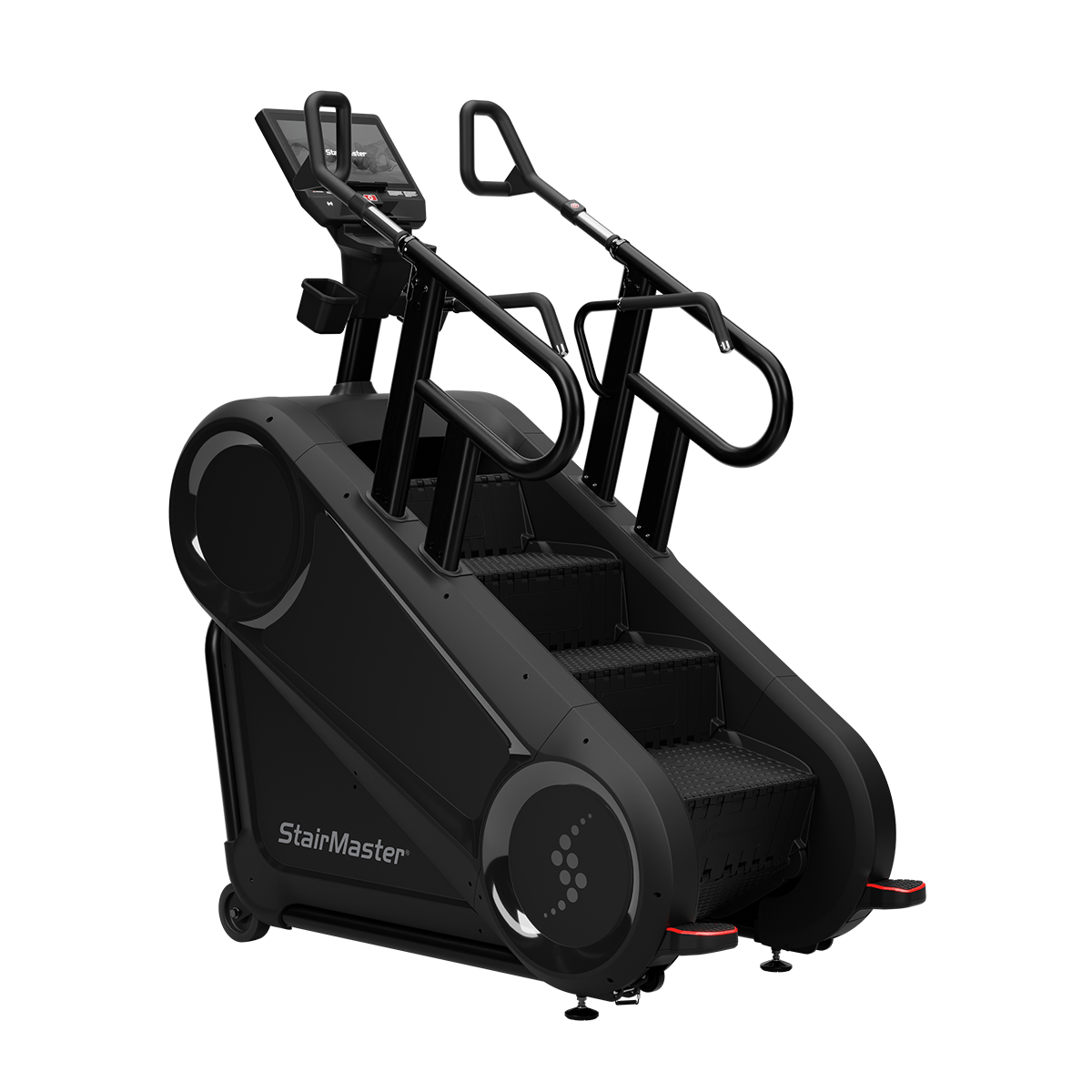

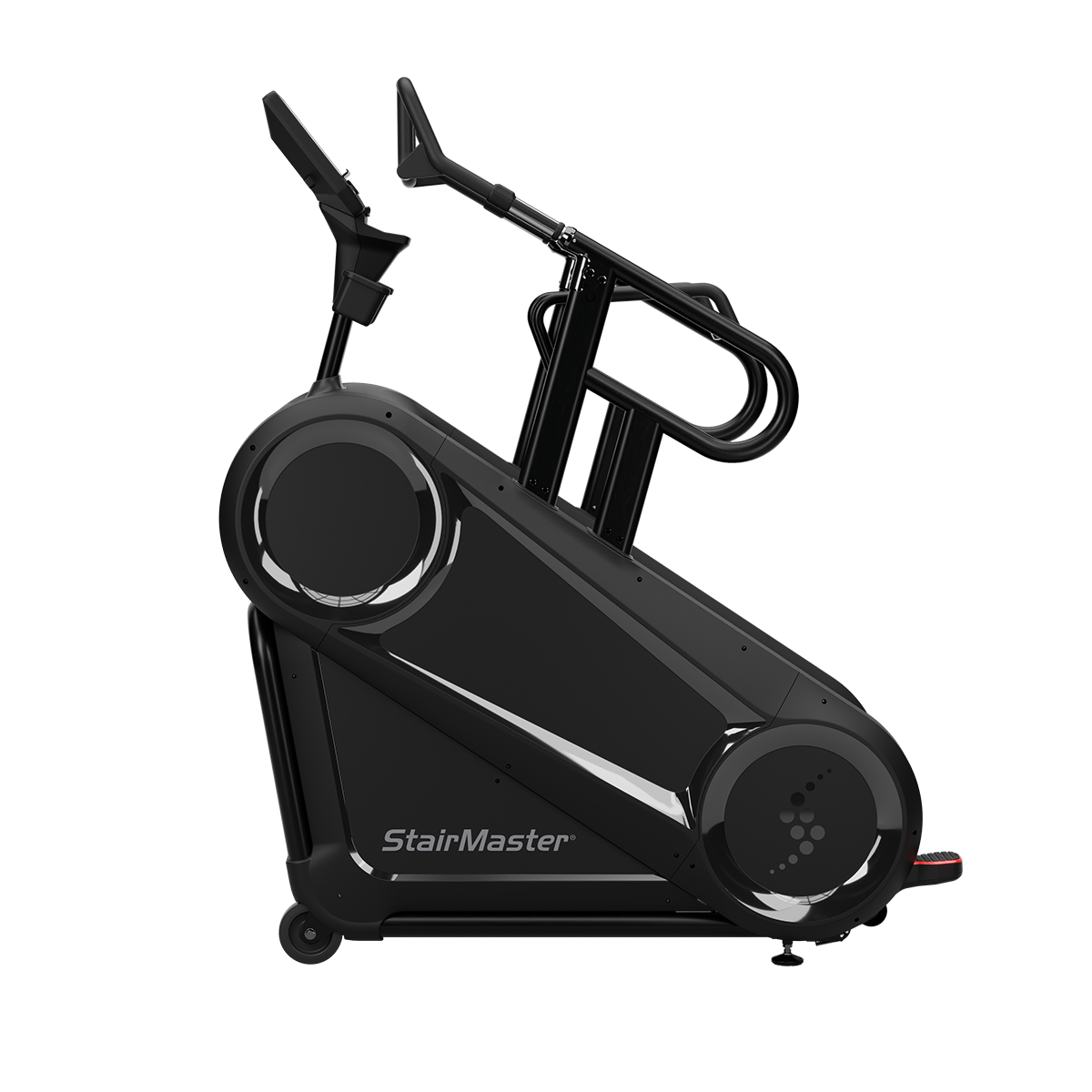

StairMaster 10 Series 10G w/ 16" Touchscreen - New for 2025

The StairMaster 10 Series Gauntlet with 16" ATSC Embedded is new for 2024. It is a state-of-the-art stair climber that takes cardio workouts to a whole new level. With its innovative features and cutting-edge technology, this machine provides an intense yet rewarding fitness experience. The 16" ATSC EMBEDD display offers a clear and interactive interface, granting users access to a wide range of pre-set programs, virtual courses, and real-time performance tracking. The Gauntlet's revolving staircase design engages major muscle groups in the lower body, delivering an efficient and low-impact cardio session. Its sturdy construction and commercial-grade quality ensure stability and safety during intense workouts. Whether you're a fitness enthusiast or a beginner, the StairMaster 10 Series Gauntlet with 16" ATSC EMBEDD - New for 2024 is the perfect companion to achieve your fitness goals and elevate your overall health and well-being.

The Hardest Workout In The Gym Just Got Harder.

The StairMaster 10G marks a revolutionary shift in stair-climbing technology. The innovative new design features the OverDrive Training Mode that simulates carrying or pushing a load up stairs, for the most intense climbing workout. The 10G’s advancements all focus on delivering the best climbing experience ever created. User-focused features include the widest and deepest stepping surface and lowest step-up height in the industry, ergonomic handrails to support multiple climbing positions and an all new drive train that delivers smooth, quiet performance.

BASE FEATURES

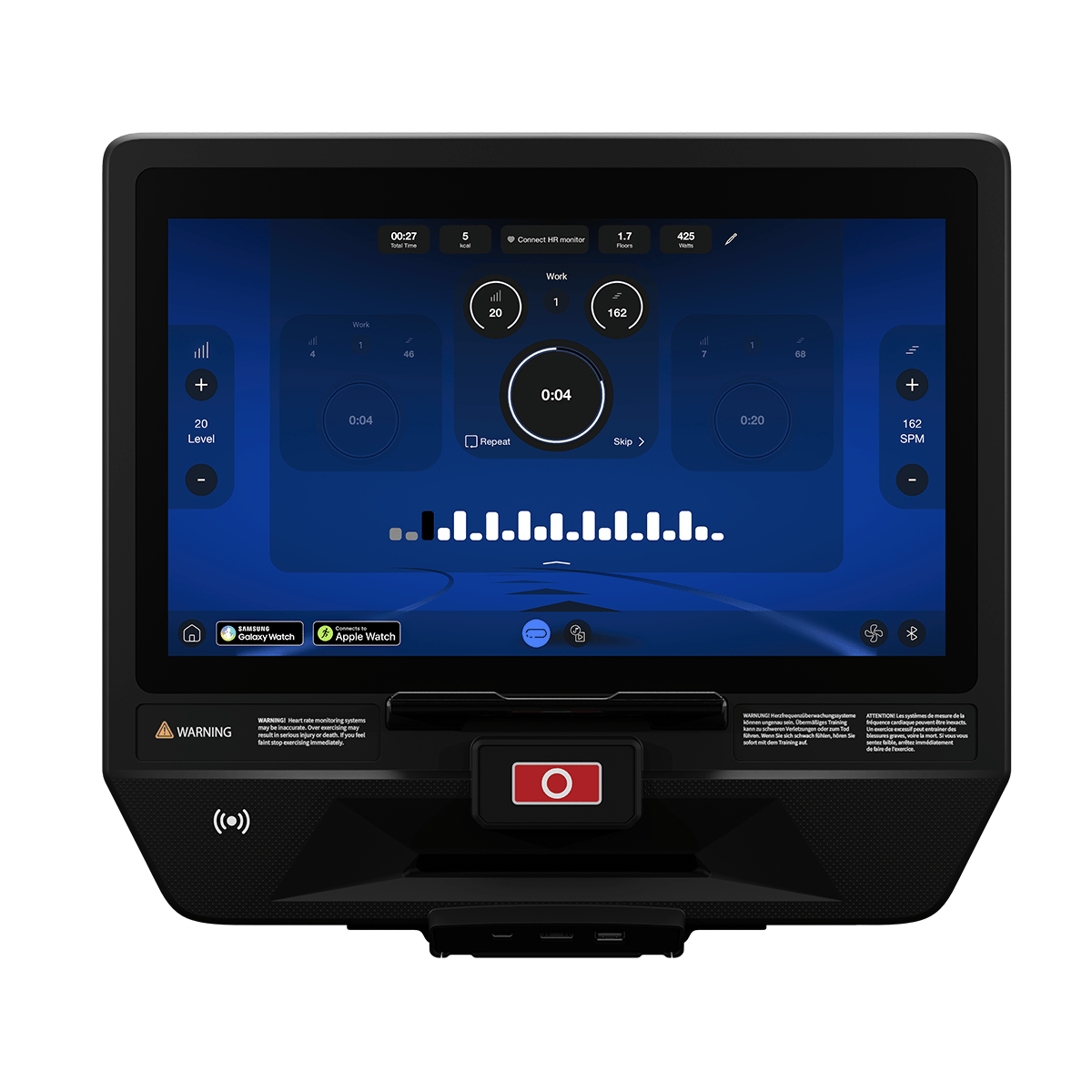

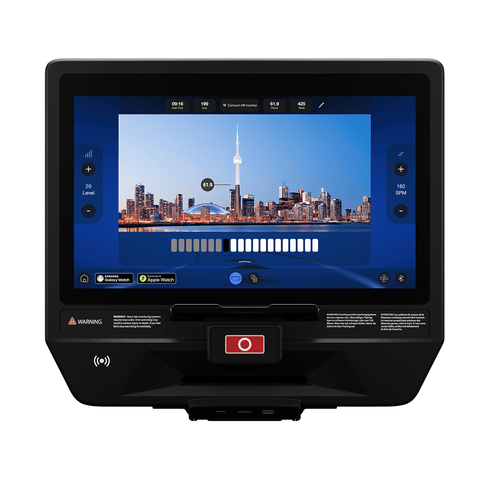

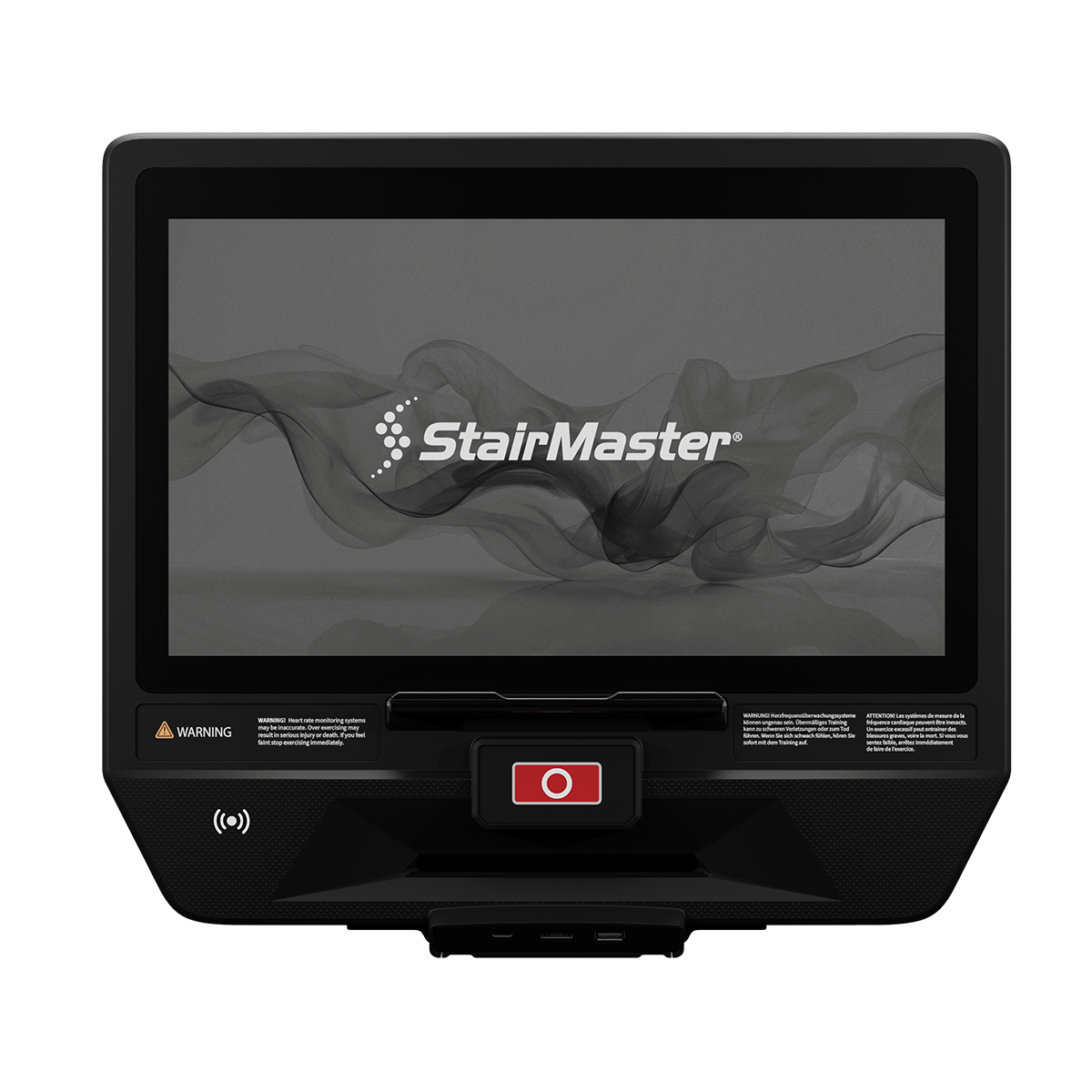

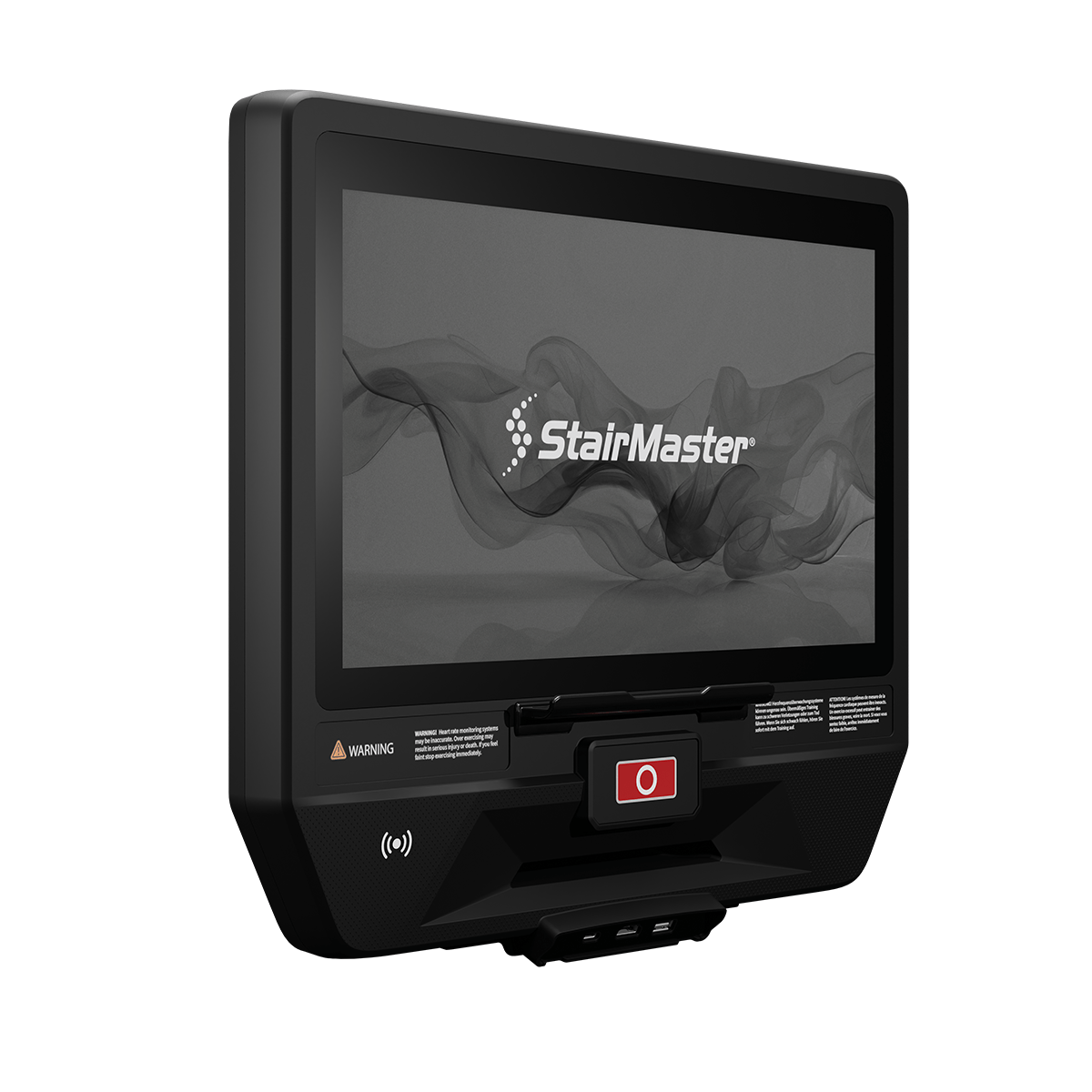

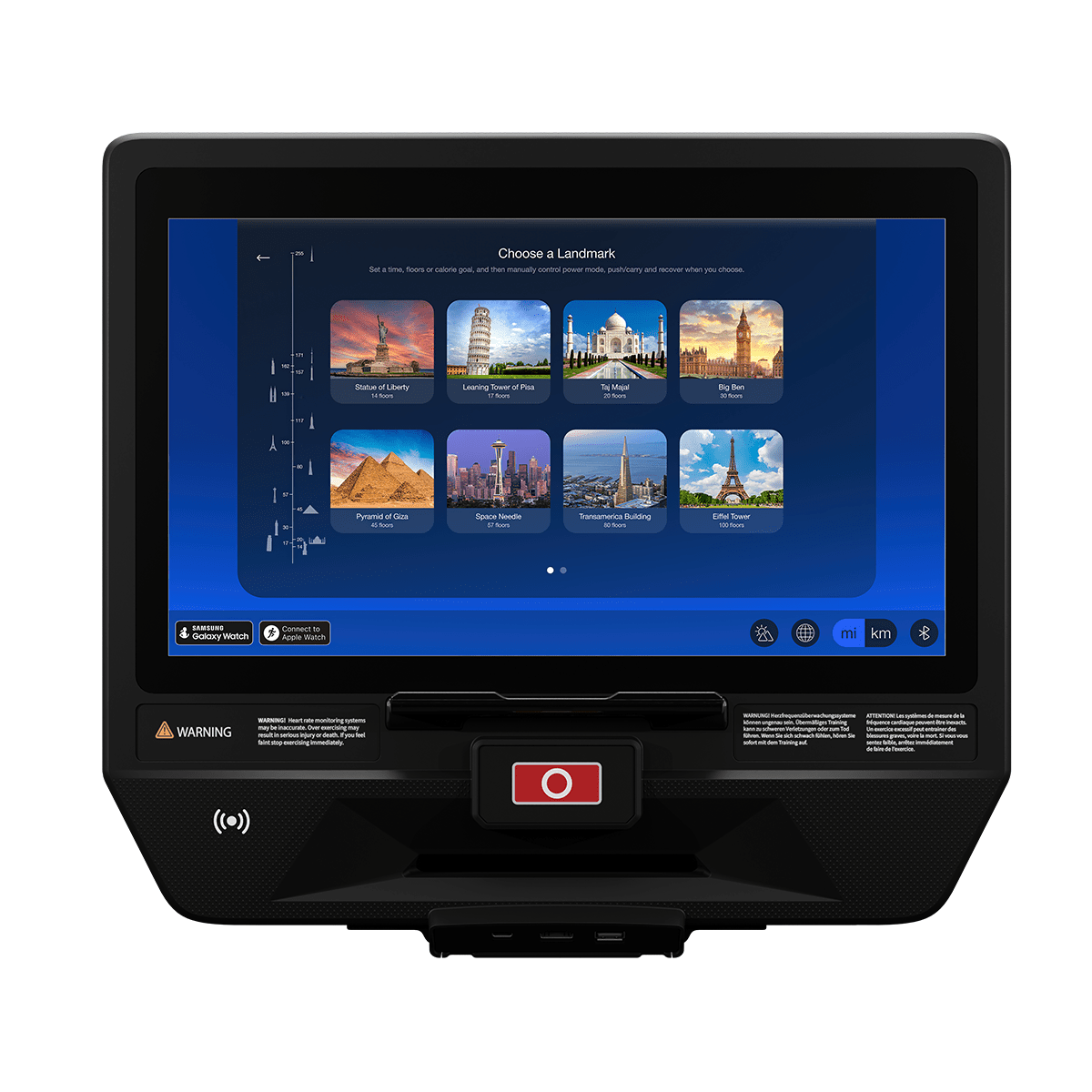

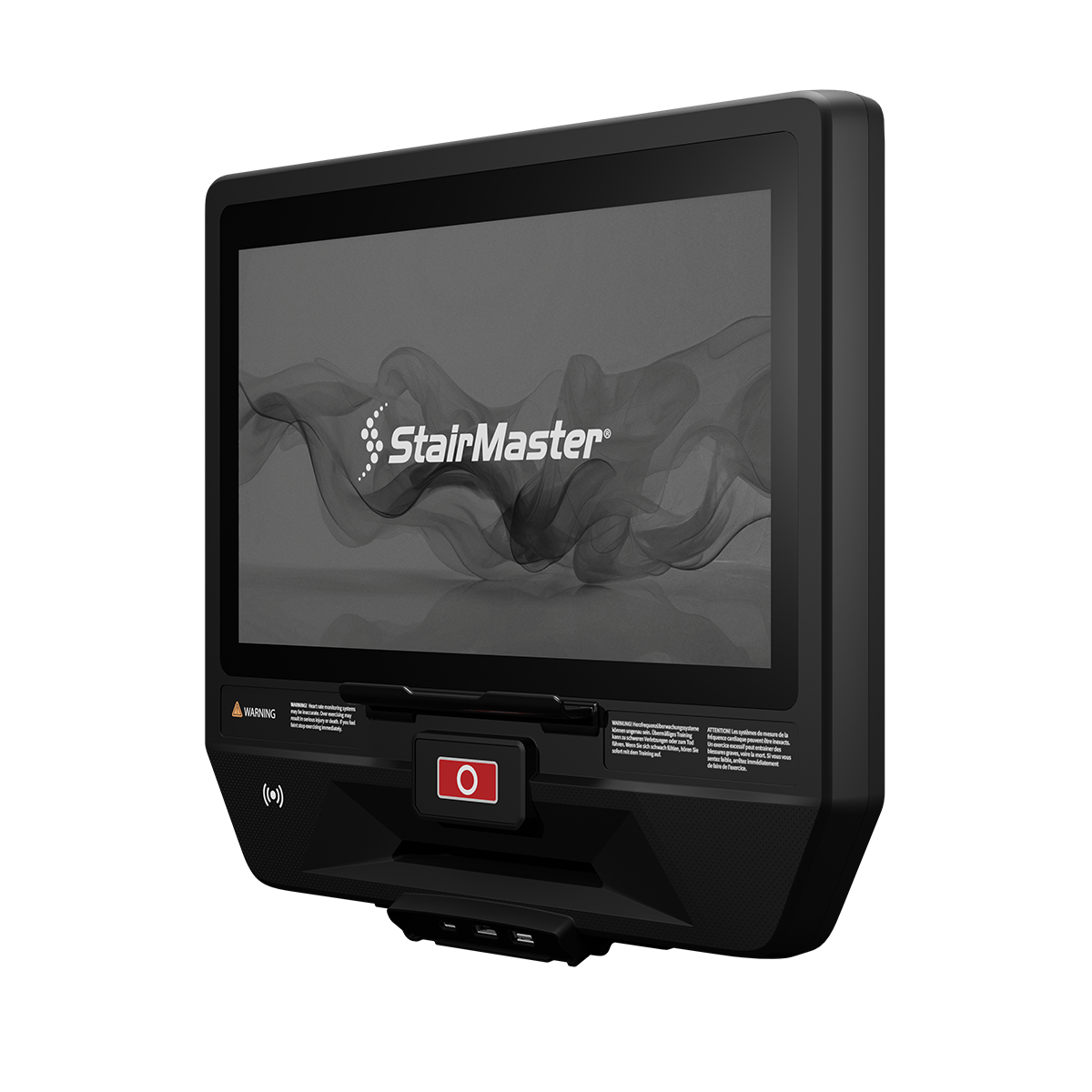

• Display: Choose from LED, or 16in (40.5cm) Touchscreen - see next page for display technology

• Step Surface: 12in (30cm) Deep x 22in (56cm) Width

• Step Height: 8in (20cm)

• Step Rate: 25 Levels ranging from 24-190 steps per minute

• Recommended Ceiling Height: 10ft (3.05m)

• Step-up Height: 9in (23cm)

• Controls: Easily accessible integrated speed and elevation controls, stop button and contact heart rate grips

• Contact & telemetric HR: Yes

• Wireless Phone Charging: Yes

• Max user weight: 400lb (181kg)

• Drive System: Generator

• Special Features: Intense OverDrive Training Mode: Boost cardio intensity with the OverDrive Training Mode, simulating the ultimate workout challenge with Sled Push and Farmer’s Carry exercises up stairs for advanced endurance training.
• Service Wheel: Yes
• Power Requirements: 12 V/5 Amp power supply

FRAME

• Material: Powder Coated Steel Frame

• Standard Color: Matte Black (-60 black)

• Customizable: Yes, frame color is customizable. Paint color approval required.

• Assembled Dimensions: 63 x 34 x 81in (160 x 86 x 206cm)

• Product Weight: 615 lbs (279kg)

• Shipping Dimensions (boxed, base + display): 82.7 x 33.1 x 54.7in (210.1 x 84.1 x 139cm)

• Shipping Weight (boxed, base + display): 821 lbs (372.4kg)

Apex Touch Display

Performance Meets Simplicity

Designed for clarity, efficiency, and ease of use, the 8 & 10 Apex LED Consoles deliver a streamlined cardio experience—with a modern, sleek look that elevates any fitness space. Quick Key selection enables instant speed, incline, and resistance adjustments—ideal for HIIT and performance training. With OTA updates, facilities stay current with the latest technology, integrations, and enhancements effortlessly.

Quick Keys: Instantly adjust speed, incline, resistance, or level with one touch. Conveniently placed on both sides of the display for fast, easy access.

Automatic Software Updates: With Wi-Fi connectivity, your system stays up to date with the latest software enhancements.

Intuitive LED Interface: Bright, easy-to-read display designed for smooth, stress-free navigation.

Performance-Driven Design: Optimized for HIIT, endurance, and interval training—engineered to keep up with every goal.

Essential Workout Metrics: Track key stats in real time, including speed distance, calories and heart rate.

Connected Fitness Ecosystem: Seamless integration with apps, wearables, and tracking platforms—including Apple Watch and Samsung Watch with tap-to-pair functionality—so users can track their data their way.

Durable & Reliable: Built tough for high-traffic fitness environments
