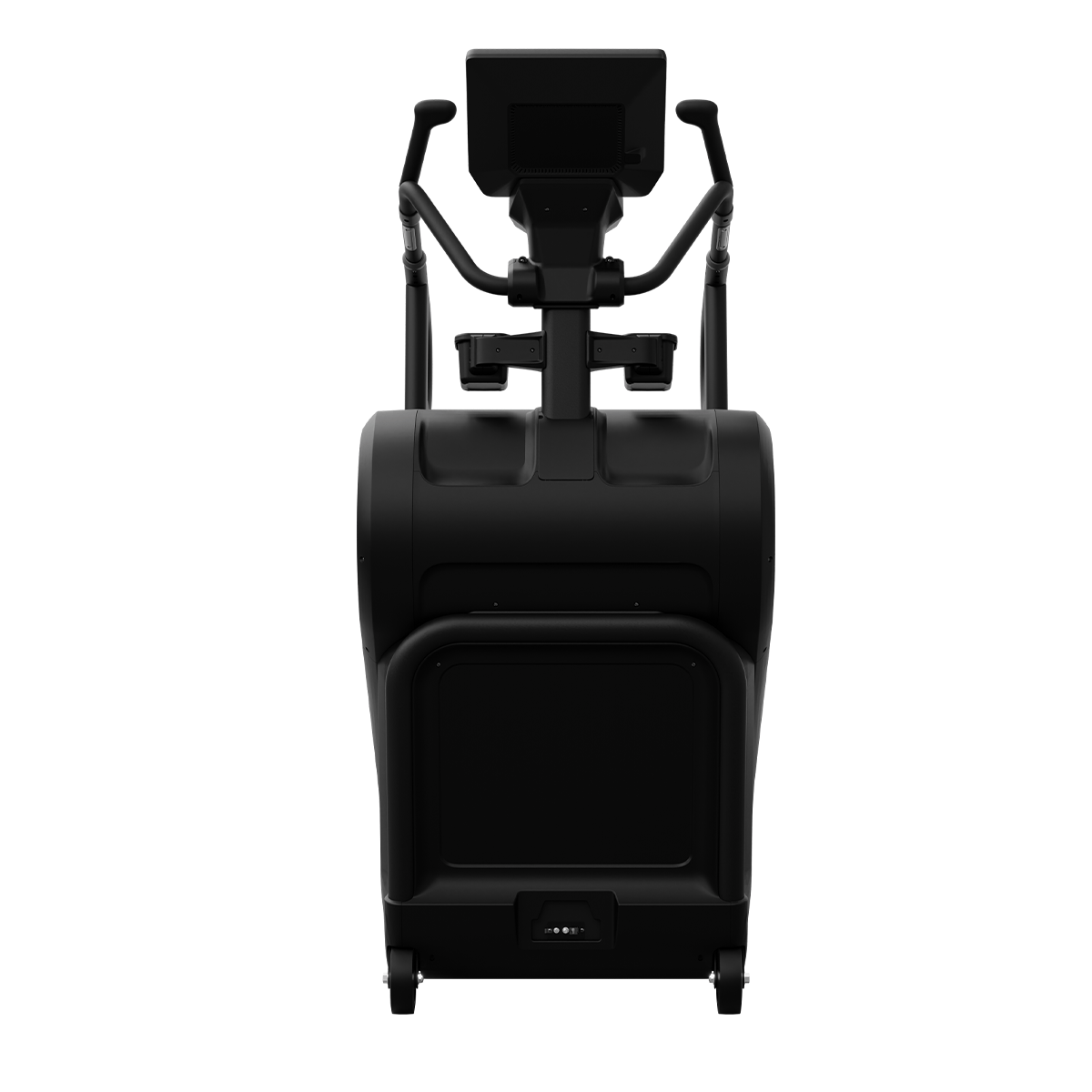

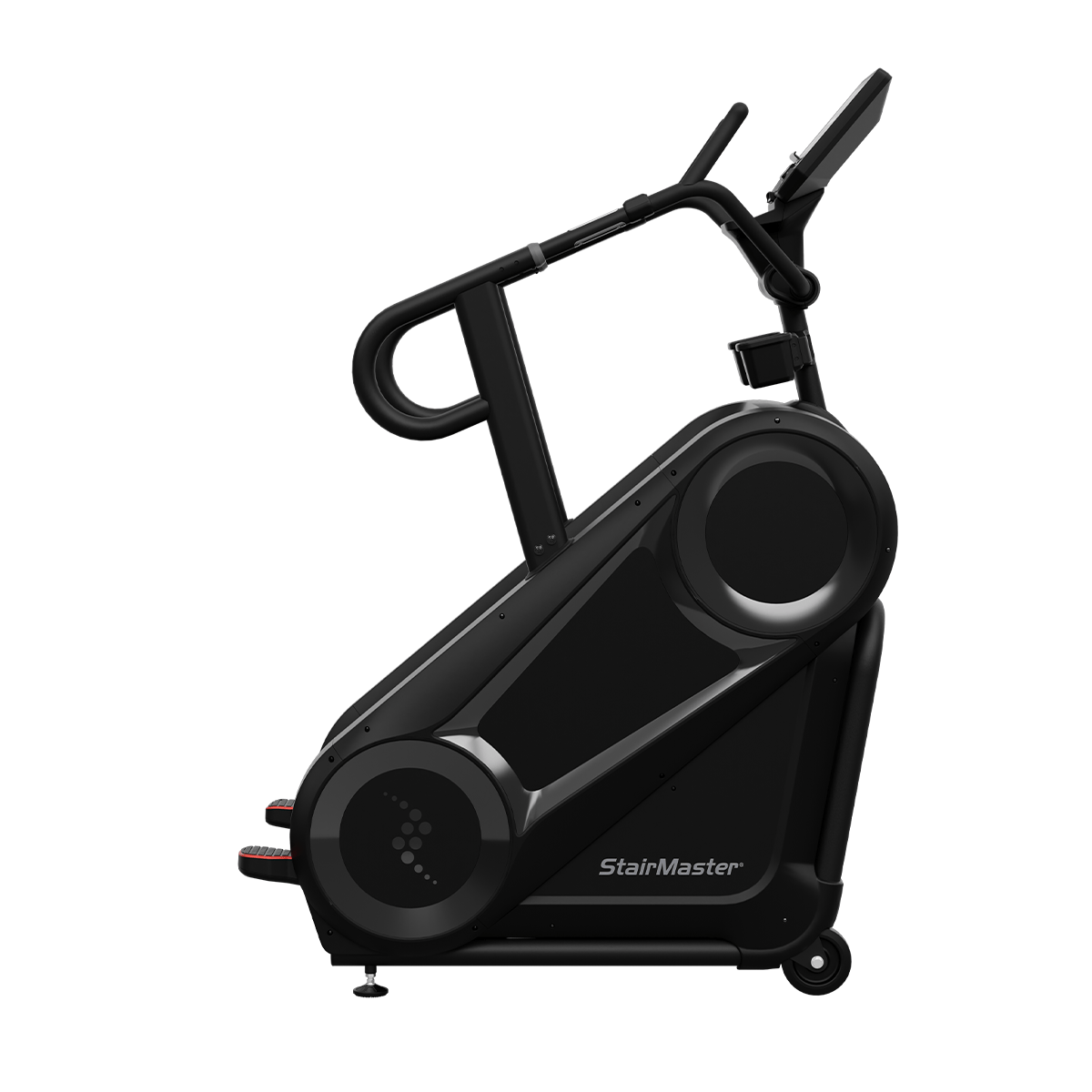

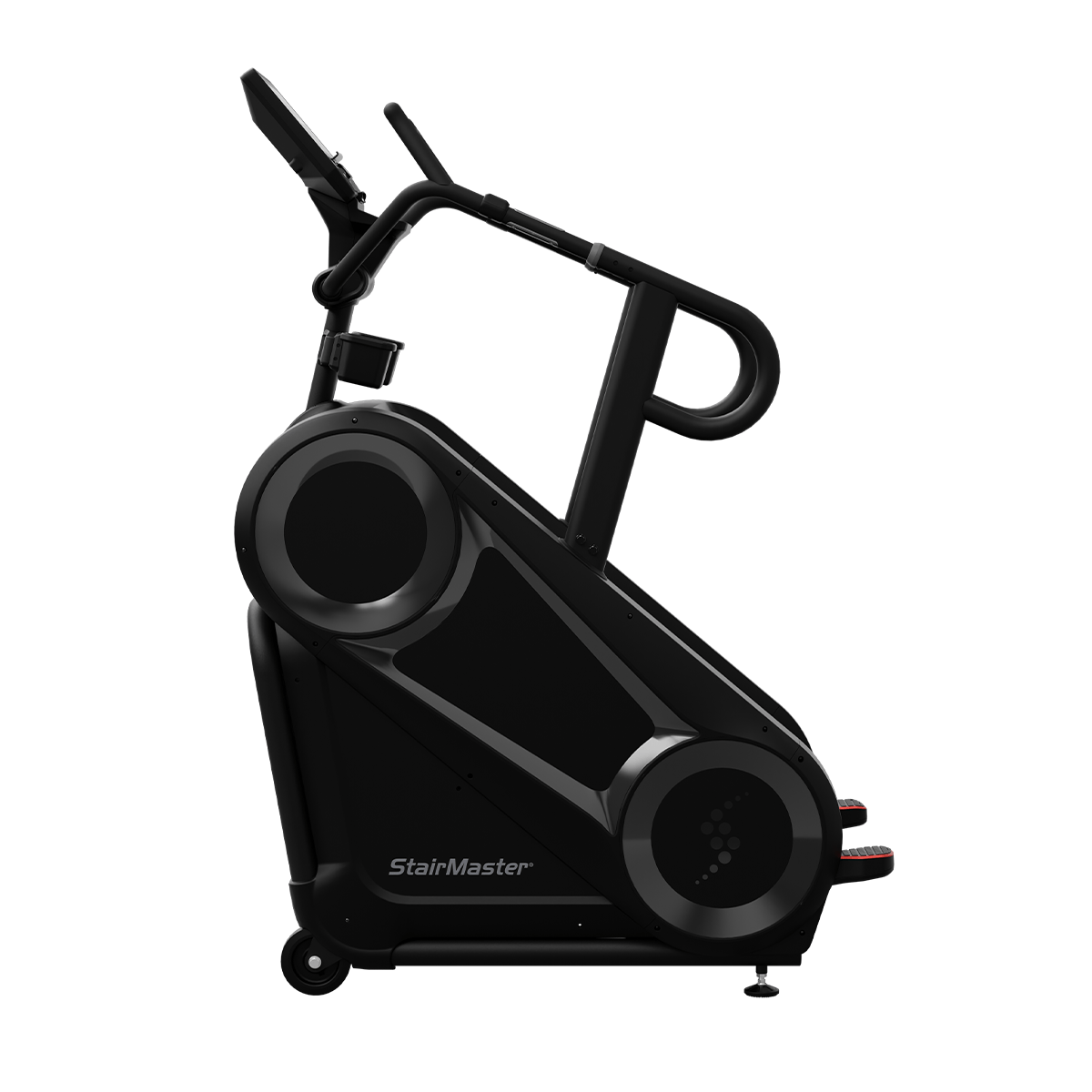

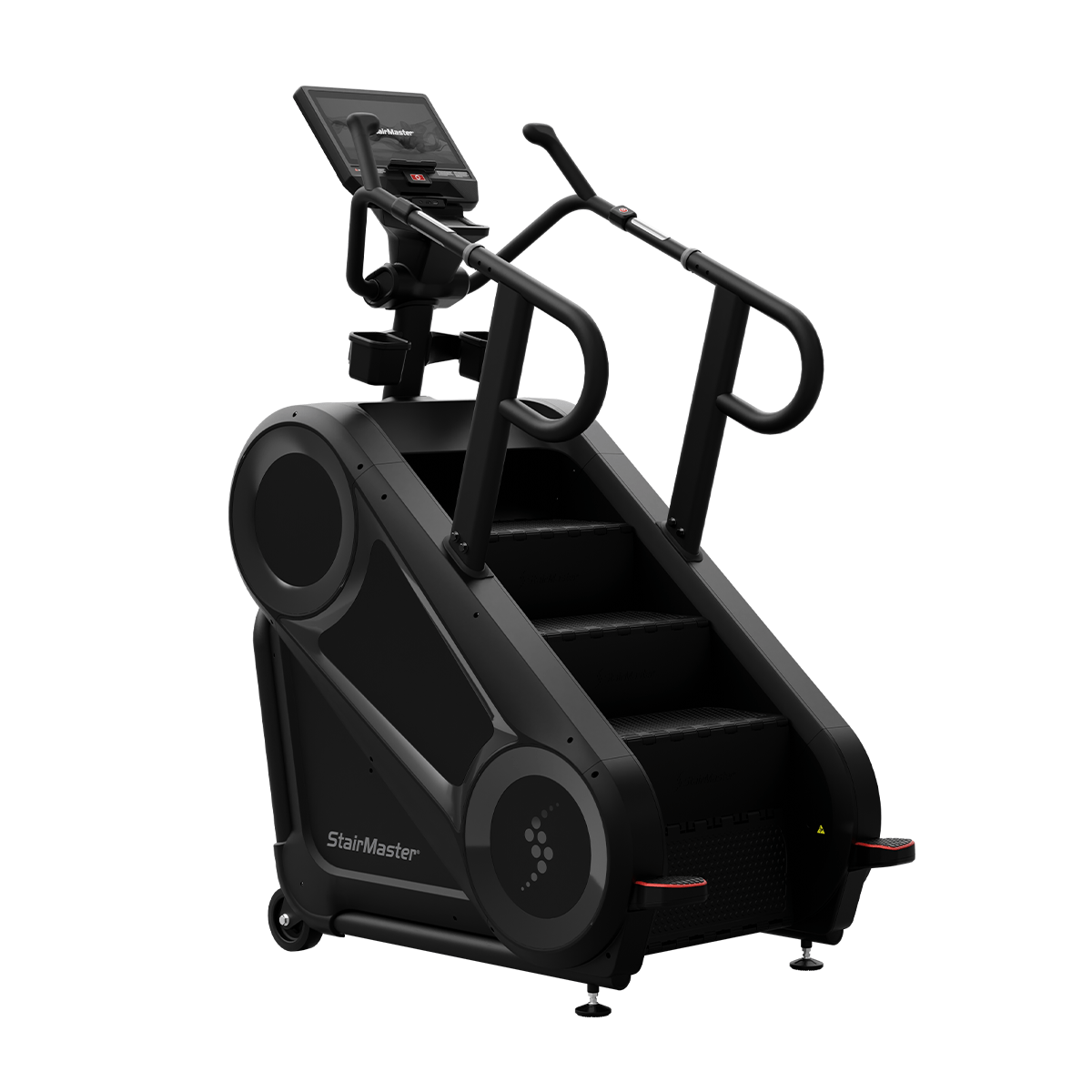

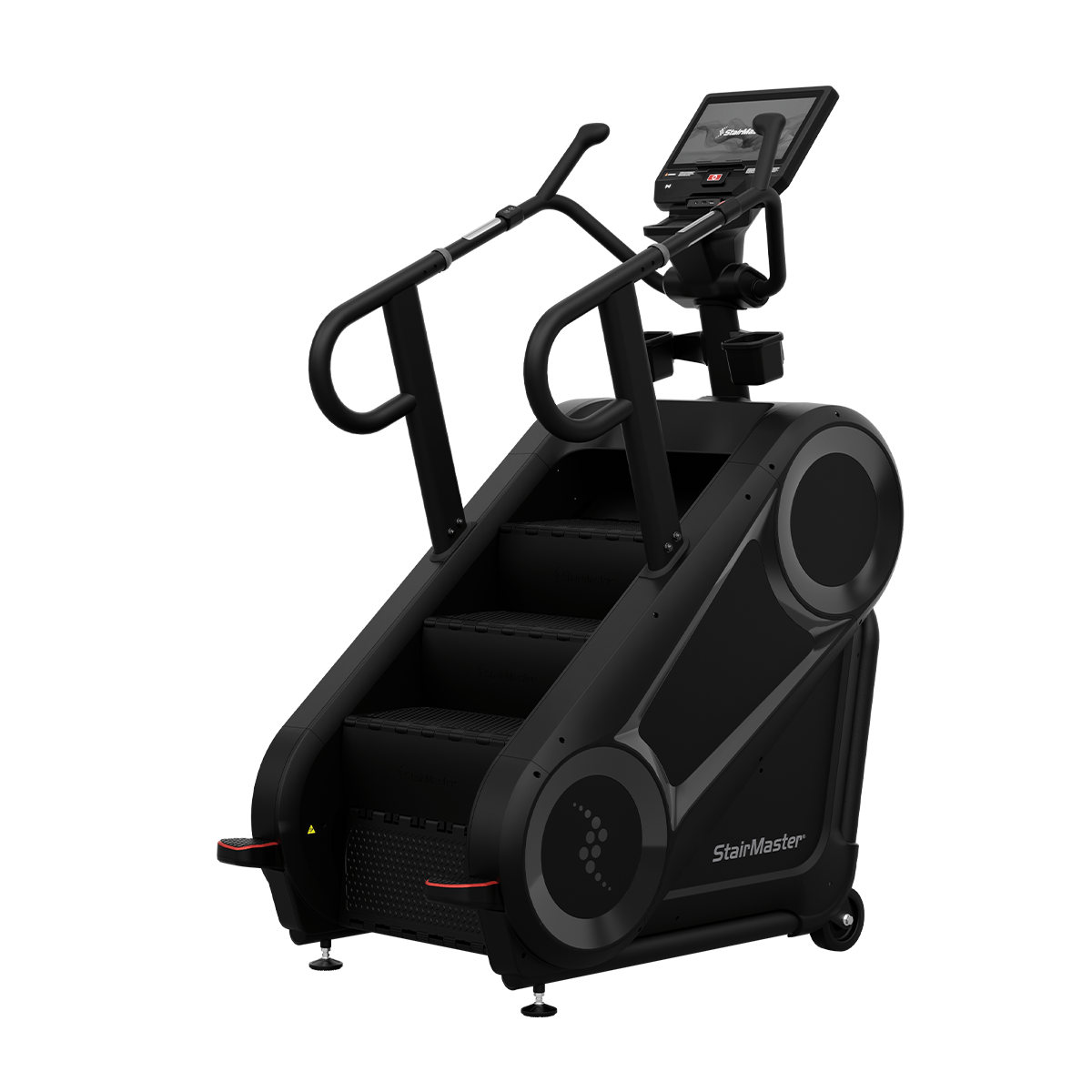

StairMaster 8 Series 8Gx w/ 16" ATSC Embedded Display - Commercial

BASE FEATURES

• Display: Choose from LED, or 16in (40.5cm) Touchscreen - see next page for display technology

• Step Surface: 10in (25cm) Deep x 22in (56cm) Width

• Step Height: 8in (20cm)

• Step Rate: 20 Levels ranging from 24-162 steps per minute

• Recommended Ceiling Height: 10ft (3.05m)

• Step-up Height: 9in (23cm)

• Controls: Easily accessible integrated speed and elevation controls, stop button and contact heart rate grips

• Contact & telemetric HR: Yes

• Wireless Phone Charging: Yes

• Max user weight: 400lb (181kg)

• Drive System: Generator

• Power Requirements: 12 V/5 Amp power supply


FRAME

• Material: Powder Coated Steel Frame

• Standard Color: Matte Black (-60 black)

• Customizable: Yes, frame color is customizable. Paint color approval required

• Assembled Dimensions: 58 x 34 x 79in (147 x 86 x 200cm)

• Product Weight: 509.4lbs (231.1kg)

• Shipping Dimensions (boxed, base + display): 53 x 37.8 x 55.3in (134.7 x 96.1 x 140.5cm)

• Shipping Weight (boxed, base + display): 609.4lbs (276.4kg)

Console:

The Future of Cardio Innovation

The 8 & 10 Series Apex HD Touchscreen Displays redefine the cardio experience with sleek design, stunning visuals, and seamless connectivity. Personal device mirroring allows users to stream YouTube, training apps, and custom workouts, while over-the-air (OTA) updates keep facilities ahead with the latest features. Elevate your gym with cutting-edge technology and intuitive performance.

Display Options: 24 inch Treadmill and 16 inch cardio HD Touch Display options.

Personal Device Mirroring: Wirelessly stream content from iOS and Android devices.

Over-the-Air (OTA) Updates: Automatic software updates ensure the latest features.

High-Definition Touchscreen: Stunning visuals with an intuitive, user-friendly interface.

Connected Fitness Ecosystem: Seamless integration with apps, wearables, and tracking platforms—including Apple Watch and Samsung Watch with tap-to-pair functionality—so users can track their data their way.

Built-In Entertainment Apps: Stay motivated with access to Netflix, Run TV, and more—right from the console. Stream your favorites and enjoy every workout with immersive content at your fingertips.

Download the Product Sheet

Benefits of Using an Indoor Stair Climber

If you’re looking to lose weight, your first instinct may be to go for a run. But did you know you can actually burn more calories by climbing steps than by running for the same amount of time? Aside from the great cardiovascular benefits, using a stepper also offers these advantages:

• A high-cardio, low-impact workout that burns a high level of calories
• Allows for a wide range of motion that improves joint flexibility
• Improves core stability
• Improves coordination and balance
• Targets a wide variety of muscles groups across the body

Muscles Targeted

• Gluteals
• Hip Flexors
• Illo-Psoas
• Illo-Tibial Band
• Piriformis
• Tensor Fascia Latae
• Trunk Stability Muscles
