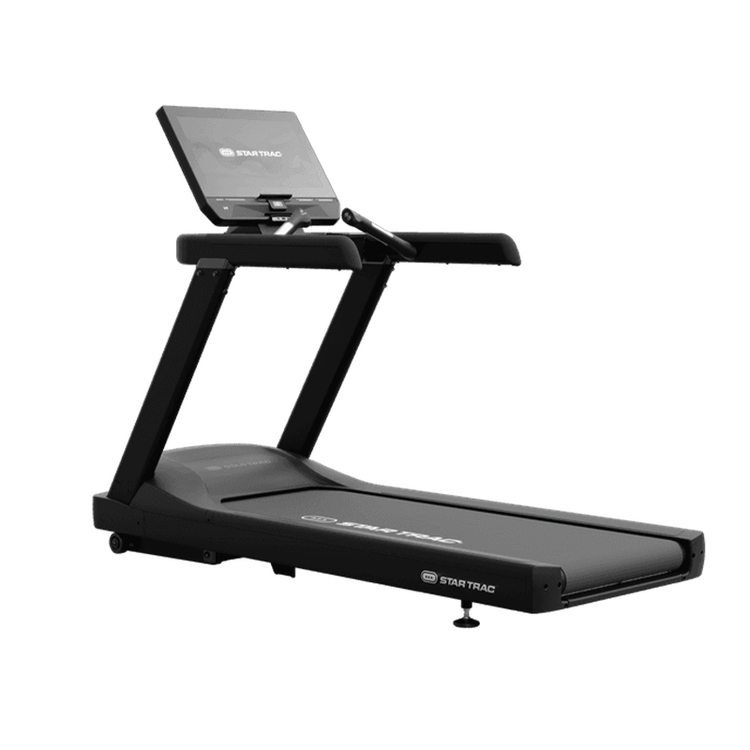

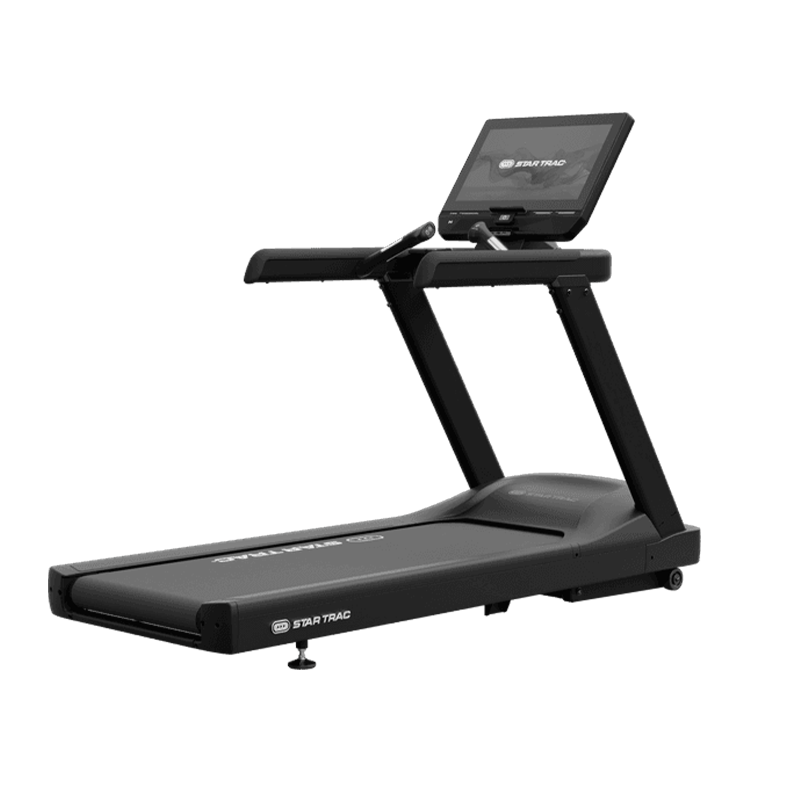

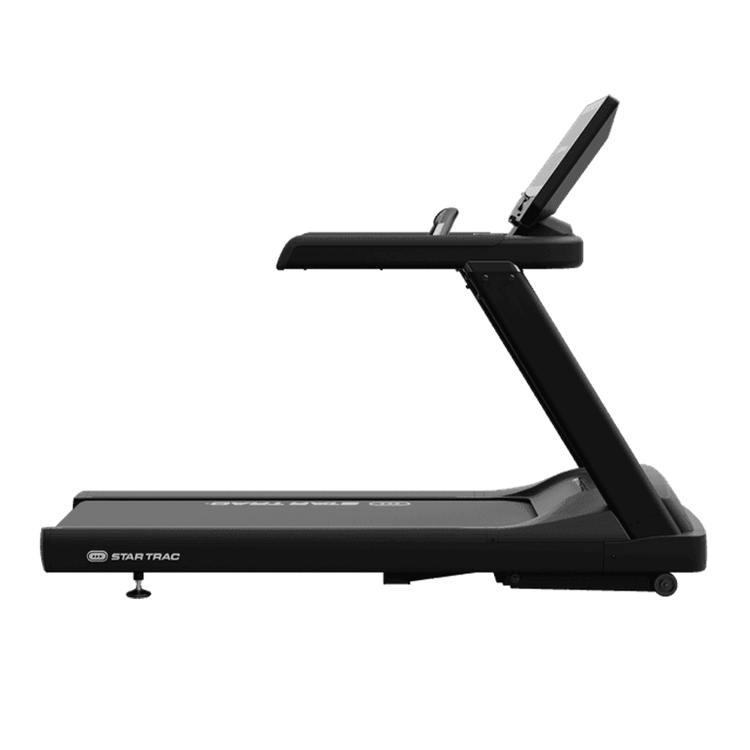

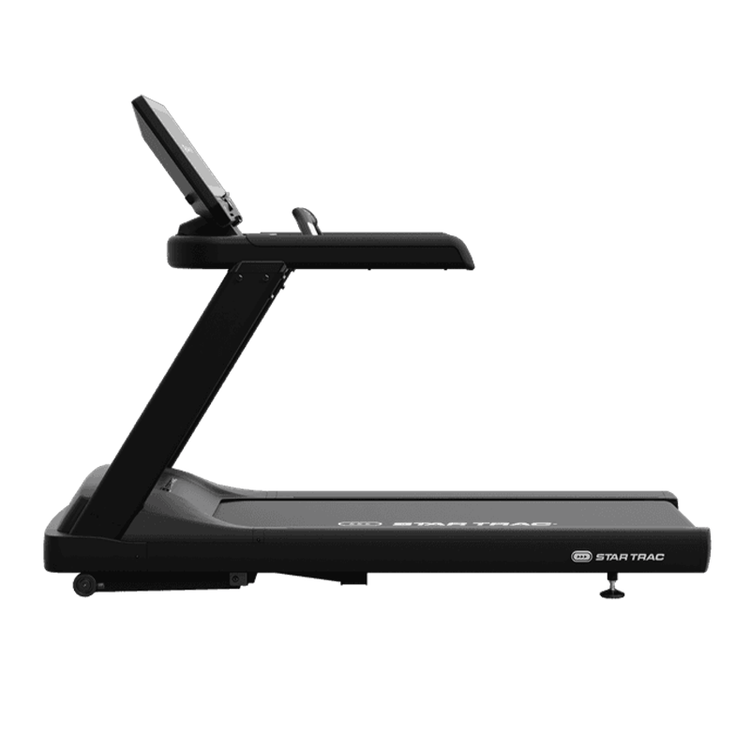

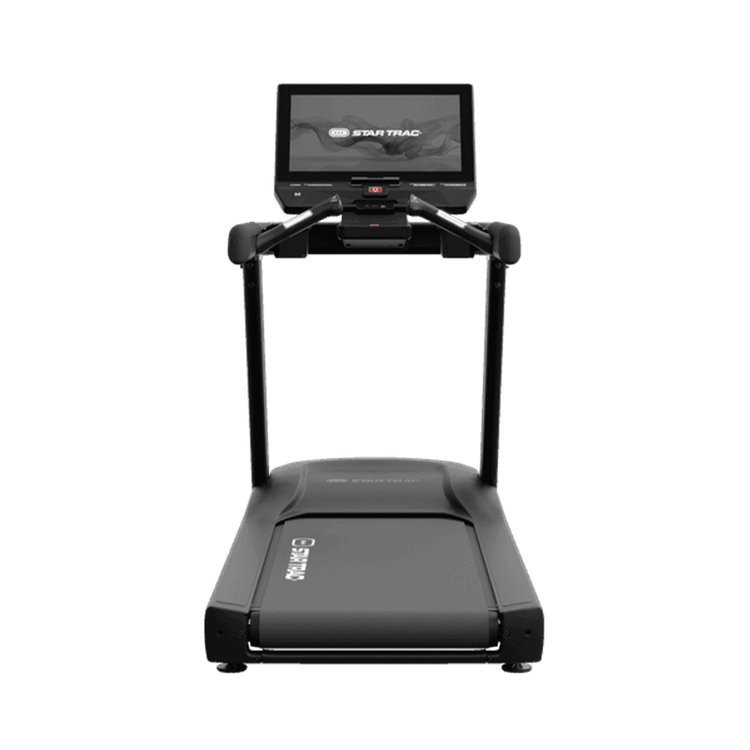

Star Trac 6TR 6 Series Treadmill w/ Apex 24" Embedded Display - New for 2026

The Star Trac 6TR, part of the OpenHub™ ecosystem, offers seamless connectivity and intuitive user engagement. Choose the Touchscreen console for streaming, interactive workouts, and real-time tracking, or the 10in LCD console for a simplified, performance-driven interface. With Bluetooth, wireless integration, and over-the-air updates, your facility stays ahead.

Base Features:

• Display: 24 in Touchscreen Touchscreen
• Deck System: Reversible MDF deck with phenolic coating

• Deck Cushioning: SoftTrac® technology - Triple cell cushioning system provides maximum shock absorption making the entire deck asweet spot

• Running Surface Area: 60 x 22 in (152 x 55 cm)

• Incline Range: 0 - 15% max incline

• Speed Range: 0.5 - 12.5 mph (0.5 - 20 kmh)

• Step Up Height: 7 in (17.8 cm)

• Center Control Bar: Performance grips with integrated speed and incline control

• Heart Rate Measurement System: Telemetry and contact HR

• Wireless Phone Charging: Yes

• User Detect System: Yes, programmable on/off

• Accessories: Multiple bottle and accessory holders, pre-wired for PVS entertainment

• Max User Weight: 500 lb (227 kg)

• Drive System: 5 HP AC motor

• Additional Features: 3.5 in rollers

• Electrical Requirements: 110V/20 Amp dedicated circuit with NEMA 5-20 outlet; or 220V/15 Amp dedicated circuit with NEMA 6-15 outlet

Frame:

• Material: Powder Coated Steel Frame

• Standard Color: Matte Black (-60 black)

• Customizable: Yes, frame color is customizable. Paint color approval required

• Length: 81in (206cm)

• Width: 32in (81cm)

• Height: 60in (152cm)

• Product Weight: 459.5 lbs (208.4 kg)

• Shipping Dimensions: 89in x 36in x 23in (226cm x 92cm x 59cm)

• Shipping Weight: (Boxed) 497 lbs (225.4 kg)

Console:

• Display: 24 in Apex LCD Display

• Product Compatibility: 6 Series

• Multi-language Options: Arabic, Catalan, Chinese (Simplified & Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Hebrew, Italian, Japanese, Polish, Portuguese, Russian, Slovak, Spanish, Swedish, Thai, Turkish
• HIIT Programming: Innovative HIIT programming developed by our Master Instructors. Workouts are all 20 minutes, with variations that allow for hundreds of different workout combinations.
• Pre-programmable Workouts: Yes, 20+ Including HIIT20, Custom Intervals, Set a Goal, HR Training, RunTV Scenic routes & more

• Quick Keys: Yes, customizable
• Quick Start Options: Yes, single button start option

• Fan: Yes, programmable auto start

CONNECTIVITY & ON-BOARD ENTERTAINMENT

• Ethernet and WiFi enabled: Yes
• Over the Air (OTA) Updates Internet connection required: Yes
• Integrated Apps: Yes
• Wireless Screen Mirroring & Casting: Yes
• RUNTV: Yes; Scenic Routes, Instructor-led Videos & more
• Apple GymKit & Samsung Galaxy Watch Tap-to-Pair: Yes
• Bluetooth |  Data Tracking & App Connectivity: Yes
• Bluetooth | Audio, Heart Rate: Yes
• Wireless Phone Charging: Yes
• USB Ports: Yes, integrated USB-A and USB-C ports for device charging and manual software updates: cables not included
• Wired Audio: Yes, by USB-C only
• HDMI Personal Device Screen Mirroring: Yes; cables not included

EXTERNAL MEDIA COMPATIBILITY

• TV tuner enabled Digital scanning only: "Yes, add-on Tuner kit required (Global Tuner Options) ATSC, ISDB-T, DTMB, DVB-T2+C"
• Pro:Idiom: Yes, with set top box

• IPTV: Yes, onboard app

• Set Top Box Compatible: Yes

PARTNER SOLUTIONS

• EGYM 5 Star: Yes - Future Feature
• Asset management: Ecofit Optional

Warranty:

COMMERCIAL: Limited 10 year warranty on structural frame not including coatings, motor and MCB 5 years parts and labor, all other components warranted for 2 years parts and 1 year labor, wear items* 1 year parts and labor.

LIGHT COMMERCIAL: Limited 10 year warranty on structural frame not including coatings, motor and MCB 5 years parts and labor, all other components warranted for 3 years parts and 3 years labor, wear items* 1 year parts and labor.

RESIDENTIAL: Limited 10 year warranty on structural frame not including coatings, motor and MCB 5 years parts and labor, all other components warranted for 10 years parts and 3 years labor, wear items* 1 year parts and labor
